2025 Checkpoint SL 7 AXS Gen 3
2025 Checkpoint SL 7 AXS Gen 3
Couldn't load pickup availability
Shipping Info
Shipping Info
Bikes will be available instore, or shipped and assembled to your local distributer.
All other items will be shipped by Australia Post Standard Shipping.
Or, feel free to pick up your order instore!
If you have any troubles, give us a call on 0480 349 805 to discuss the 2025 Checkpoint SL 7 AXS Gen 3
Servicing
Servicing
Uncover the Perfect Service Level for your Bike, from Every 3 to 6 Months, to Every 12 Months.
Click here to Learn More!

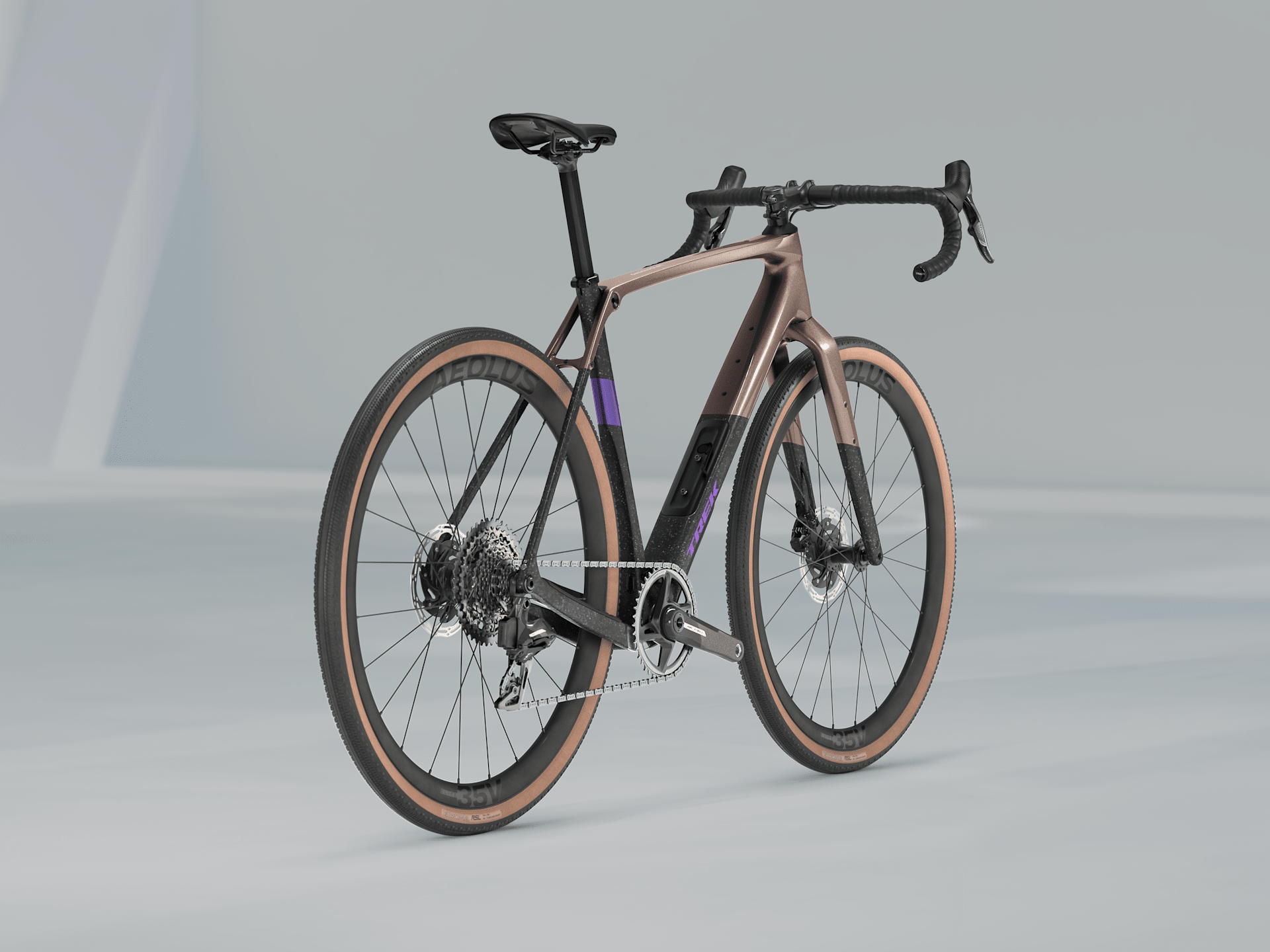

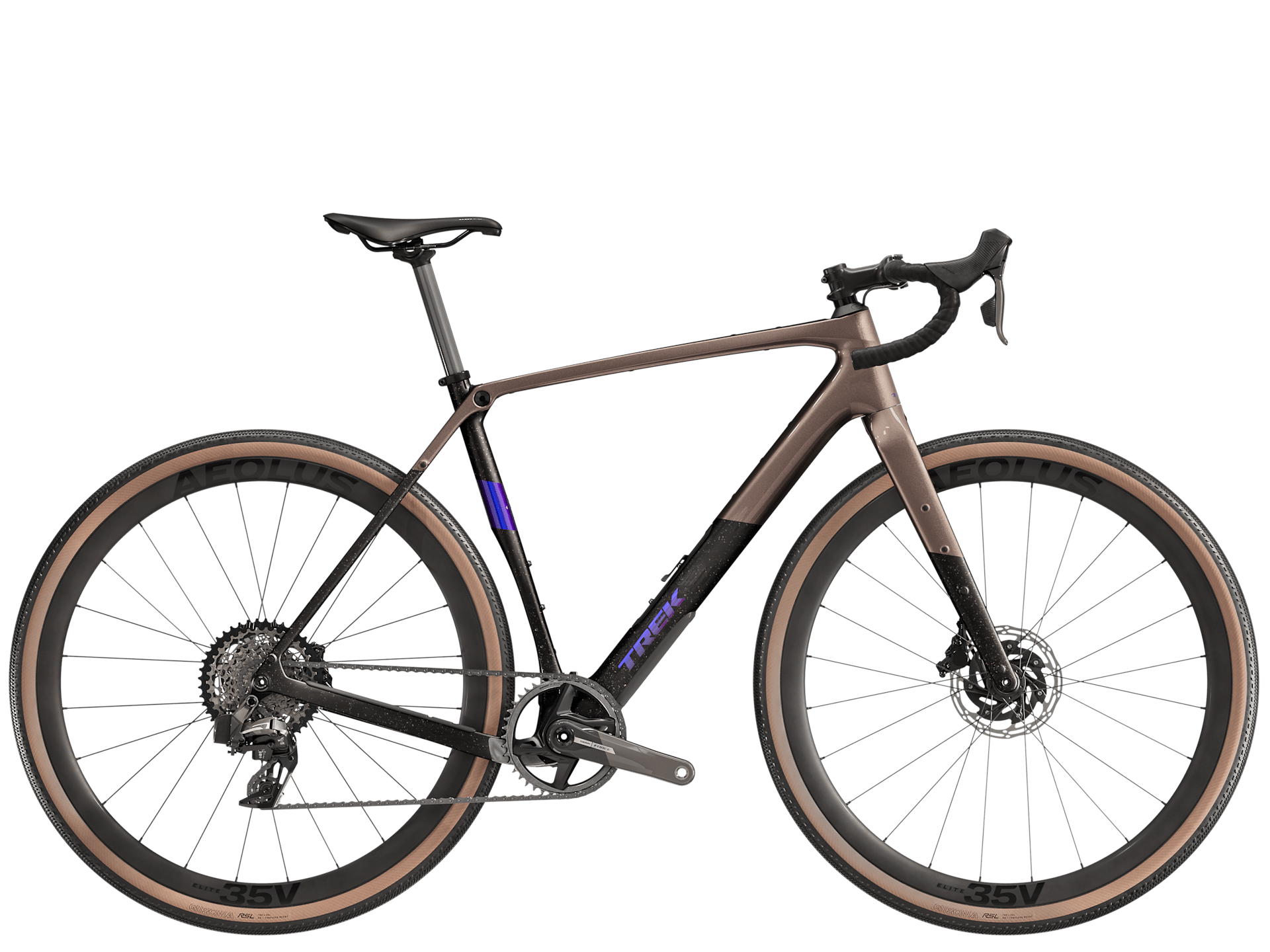

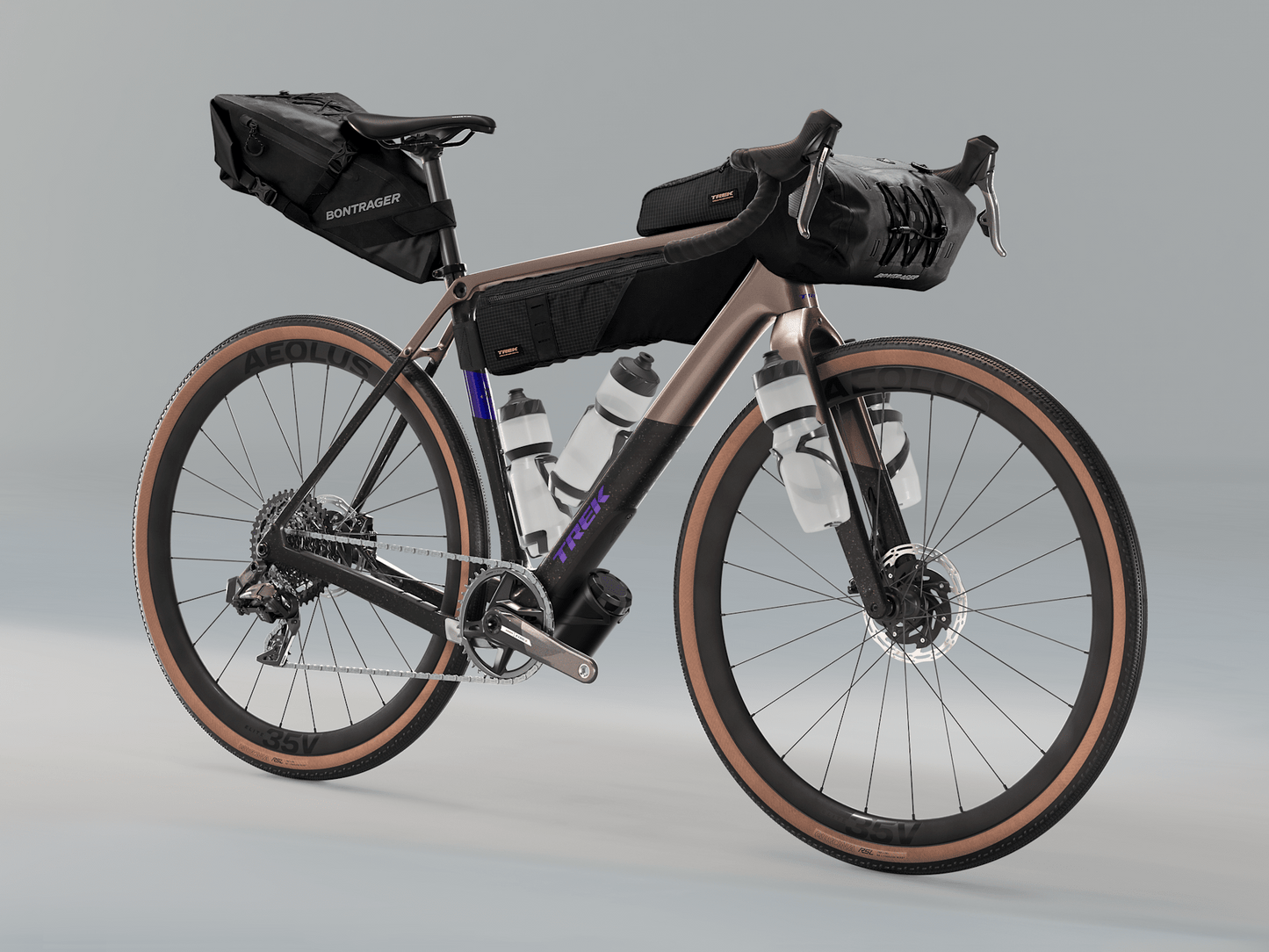

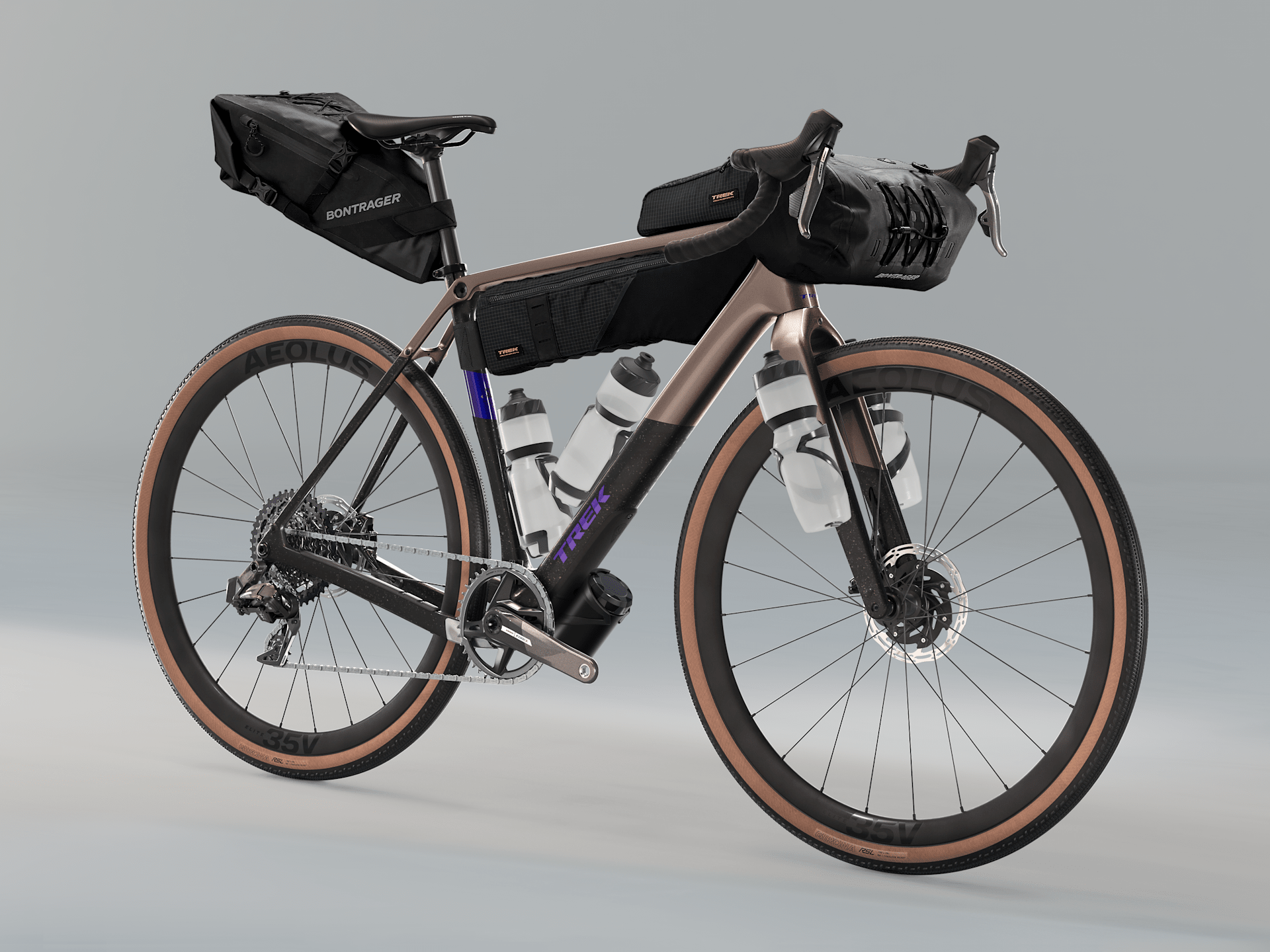

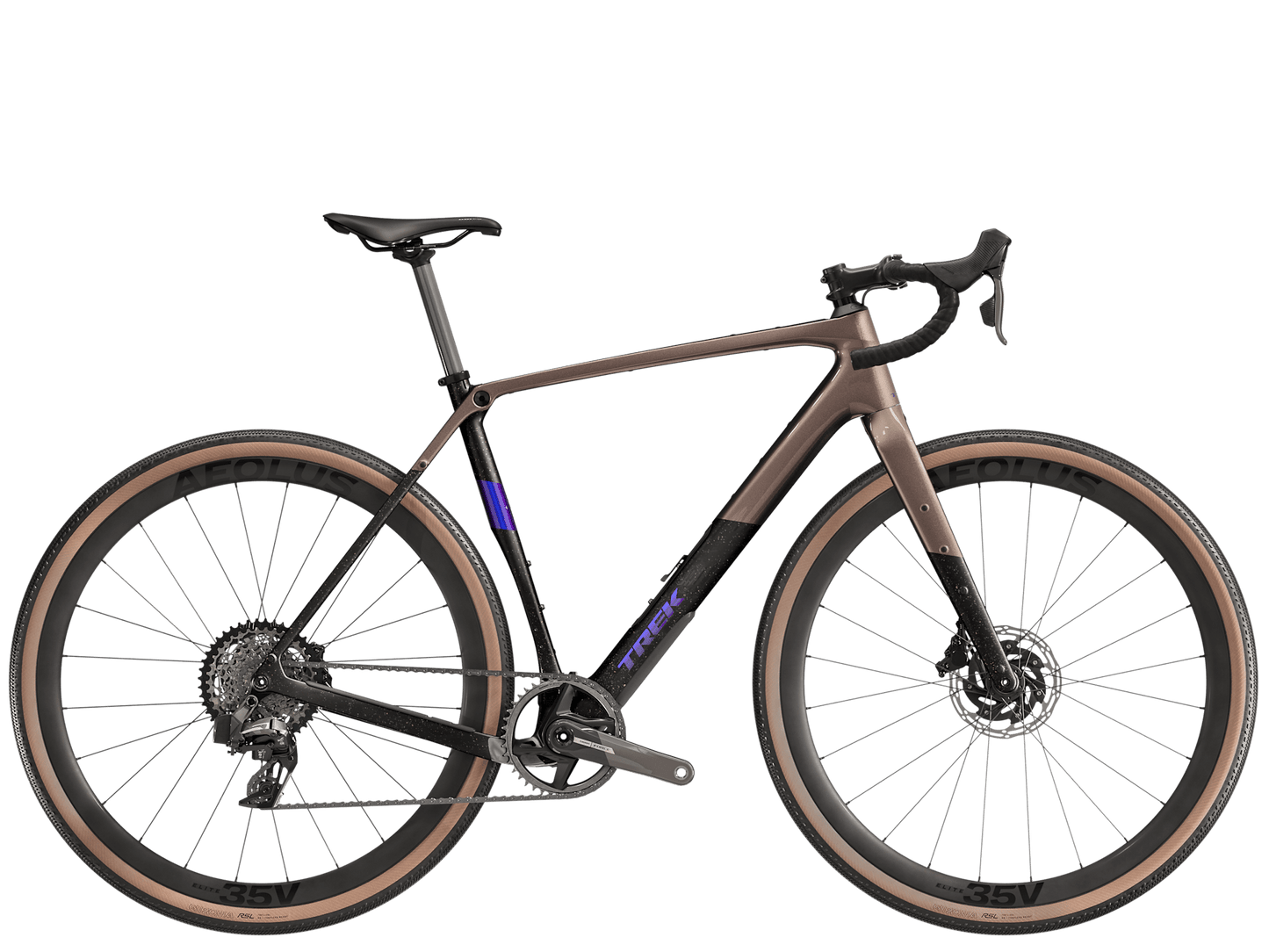

The Checkpoint SL 7 AXS Gen 3 is a carbon gravel bike built to explore the beyond. Its lightweight carbon frame is designed with a Gravel Endurance geometry, tons of mounts and clearance for up to 50 mm tyres (as measured). Plus, IsoSpeed comfort tech helps soak up jarring vibrations to help you float over chatter and potholes. It's decked out with upgrades where you want them most, like carbon wheels and seat post, and a wireless SRAM Force AXS D2 drivetrain.
Specifications
Specifications
Frame 500 Series OCLV Carbon, IsoSpeed, downtube storage door, hidden mudguard mounts, rack mounts, integrated frame bag mounts, invisible cable routing, T47, flat-mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12 mm chamfered thru axle
Fork Checkpoint full carbon, tapered carbon steerer, mudguard mounts, triple rack mounts, flat-mount disc, 12x100 mm chamfered thru axle
Max compatible fork travel 40 mm (XS: compatible with rigid fork only)
See Checkpoint SL Gen 3 FAQ for compatible options
Weight
Weight ML - 9.00 kg / 19.85 lbs (with TLR sealant, no tubes)
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
E-system
Battery SRAM eTap battery pack (with charger)
Drivetrain
*Shifter Size: XS, S, M, ML, L, XL
SRAM Force AXS D2, 12-speed
Size: XS, S, M, ML, L, XL
SRAM Force AXS D2, 12 speed
Rear derailleur SRAM Force XPLR AXS D2, 44T max cog
*Crank Size: XS, S
SRAM Force 1 D2, 40T, DUB, 165 mm length
Size: M
SRAM Force 1 D2, 40T, DUB, 170 mm length
Size: ML, L
SRAM Force 1 D2, 40T, DUB, 172.5 mm length
Size: XL
SRAM Force 1 D2, 40T, DUB, 175 mm length
Bottom bracket SRAM DUB, T47 threaded, internal bearing
Cassette SRAM XG-1271, 10-44, 12-speed
Chain SRAM Force, 12-speed
Max. chainring size 1x:44 2x: 46/30
Wheels
Wheel front Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless-Ready, 35 mm rim depth, 100x12 mm thru axle
Wheel rear Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless-Ready, 35 mm rim depth, SRAM XD-R driver, 142x12 mm thru axle
Skewer front Bontrager Switch chamfered thru axle, removable lever
Skewer rear Bontrager Switch chamfered thru axle, removable lever
Tyre Bontrager Girona RSL, Tubeless Ready, GR puncture protection, aramid bead, 220 tpi, 700x42 mm
Tyre part Bontrager TLR sealant, 180 ml/6 oz
Rim strip Bontrager TLR
Max tyre size 50 mm without mudguards, 42 mm with mudguards
Components
*Saddle Size: XS, S
Verse Short Elite, hollow magnesium rails, 155 mm width
Size: M, ML, L, XL
Verse Short Elite, hollow magnesium rails, 145 mm width
Seatpost Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length
*Handlebar Size: XS
Bontrager Pro Gravel, 40 cm width
Size: S, M
Bontrager Pro Gravel, 42 cm width
Size: ML, L
Bontrager Pro Gravel, 44 cm width
Size: XL
Bontrager Pro Gravel, 46 cm width
Handlebar tape Bontrager Supertack Perf tape
*Stem Size: XS
Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length
Size: S
Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Size: M, ML
Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Size: L
Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
Size: XL
Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
Brake SRAM Force AXS hydraulic disc, flat mount
Brake rotor SRAM CentreLine X, CentreLock, round edge, 160 mm
Rotor size Max brake rotor sizes: 180mm front and rear
Please contact us for any further product specific specifications for this 2025 Checkpoint SL 7 AXS Gen 3.
