2026 Checkpoint SL 7 AXS Gen 3

Bikes will be available instore, or shipped and assembled to your local distributer.

All other items will be shipped by Australia Post Standard Shipping.

Or, feel free to pick up your order instore!

If you have any troubles, give us a call on 0480 349 805 to discuss the 2026 Checkpoint SL 7 AXS Gen 3

Uncover the Perfect Service Level for your Bike, from Every 3 to 6 Months, to Every 12 Months.

Click here to Learn More!

The Checkpoint SL 7 AXS Gen 3 is a carbon gravel bike built to explore the beyond. Its lightweight carbon frame is designed with a Gravel Endurance geometry, tons of mounts and clearance for up to 50 mm tyres (as measured). Plus, IsoSpeed comfort tech helps soak up jarring vibrations so you can float over chatter and potholes. It's decked out with upgrades where you want them most, like carbon wheels and seat post, and a wireless SRAM Force AXS XPLR E1 drivetrain.
Frame
500 Series OCLV Carbon, IsoSpeed, downtube storage door, hidden mudguard mounts, rack mounts, integrated frame bag mounts, RCS Headset System, invisible cable routing, T47, flat-mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12 mm chamfered thru axle
*Fork
Size: XS, S, M, ML, L, XL
Checkpoint full carbon, tapered carbon steerer, mudguard mounts, triple rack mounts, flat-mount disc, 12x100 mm chamfered thru axle
Size: XS, S, M, ML, L, XL
Trek Checkpoint, full carbon, tapered steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle

Weight
Weight
ML - 9.33 kg / 20.57 lbs (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).

E-system
Battery
SRAM AXS battery pack (with charger)

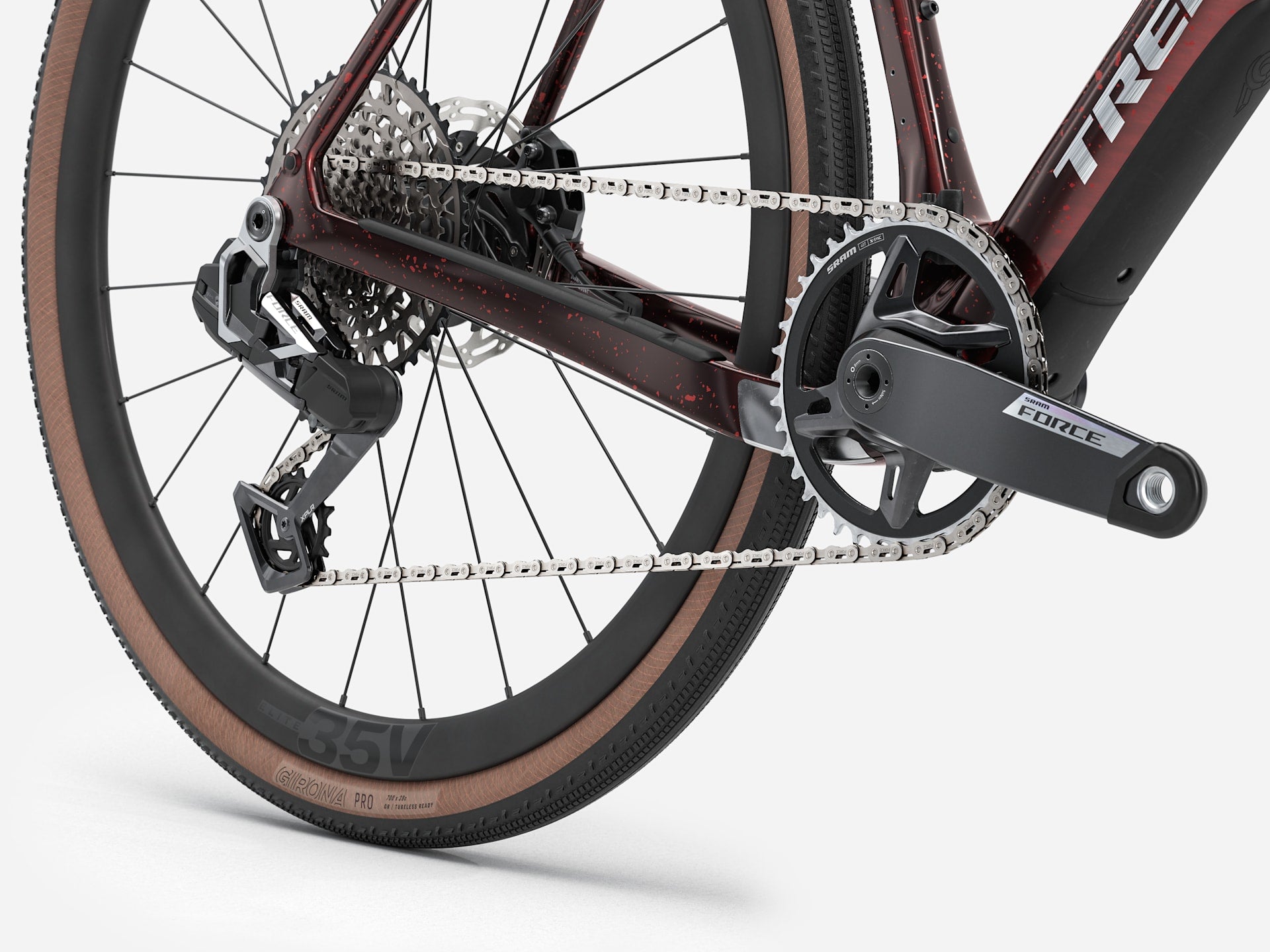

Drivetrain
Shifter
SRAM Force AXS E1
Rear derailleur
SRAM Force XPLR AXS, 46T max cog
*Crank
Size: XS, S
SRAM Force XPLR, 40T, DUB Wide, 165 mm length
Size: M
SRAM Force XPLR, 40T, DUB Wide, 170 mm length
Size: ML, L
SRAM Force XPLR, 40T, DUB Wide, 172.5 mm length
Size: XL
SRAM Force XPLR, 40T, DUB Wide, 175 mm length
Bottom bracket
SRAM DUB Wide, T47 threaded, internal bearing
Cassette
SRAM Force XPLR XG-1371, 10-46, 13-speed
Chain
SRAM Force E1, 12/13-speed
Max. chainring size
1x:44 2x: 46/30

Wheels
Wheel front
Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless-Ready, 35 mm rim depth, 100x12 mm thru axle
Wheel rear
Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless-Ready, 35 mm rim depth, SRAM XD-R driver, 142x12 mm thru axle
Skewer front
Bontrager Switch chamfered thru axle
Skewer rear
Bontrager Switch chamfered thru axle, removable lever
Tyre
Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm
Tyre part
Bontrager TLR sealant, 180 ml/6 oz
Rim strip
Bontrager TLR
Max tyre size
50 mm without mudguards, 42 mm with mudguards (as measured, see manual for details)

Components
Saddle
Verse Short Elite, hollow magnesium rails, 145 mm width
Seatpost
Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length
*Handlebar
Size: XS, S
Bontrager Pro Gravel, 40 cm width
Size: M, ML
Bontrager Pro Gravel, 42 cm width
Size: L
Bontrager Pro Gravel, 44 cm width
Size: XL
Bontrager Pro Gravel, 46 cm width
Handlebar tape
Bontrager Supertack Perf tape
*Stem
Size: XS
Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Size: S, M
Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 80mm length
Size: ML, L
Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 90mm length
Size: XL
Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 100mm length
Brake
SRAM Force AXS hydraulic disc, flat mount
*Brake rotor
Size: XS, S, M, ML, L, XL
SRAM CentreLine X, CentreLock, round edge, 160 mm
Size: XS, S, M, ML, L, XL
SRAM Paceline X, rounded, CentreLock, 160 mm
Rotor size
Max brake rotor sizes: 180 mm front and rear
Please contact us for any further product specific specifications for this 2026 Checkpoint SL 7 AXS Gen 3.
