Trek

23 Trek Domane+ AL 5 AU

23 Trek Domane+ AL 5 AU

Regular price $4,999.99 AUD
Regular price $4,999.99 AUD Sale price $4,999.99 AUD
Sale Sold out
color
Size

Shipping Info

Bikes will be available instore, or shipped and assembled to your local distributer.

All other items will be shipped by Australia Post Standard Shipping.

Or, feel free to pick up your order instore!

If you have any troubles, give us a call on 0480 349 805 to discuss the 23 Trek Domane+ AL 5 AU

Servicing

Uncover the Perfect Service Level for your Bike, from Every 3 to 6 Months, to Every 12 Months.

Click here to Learn More!

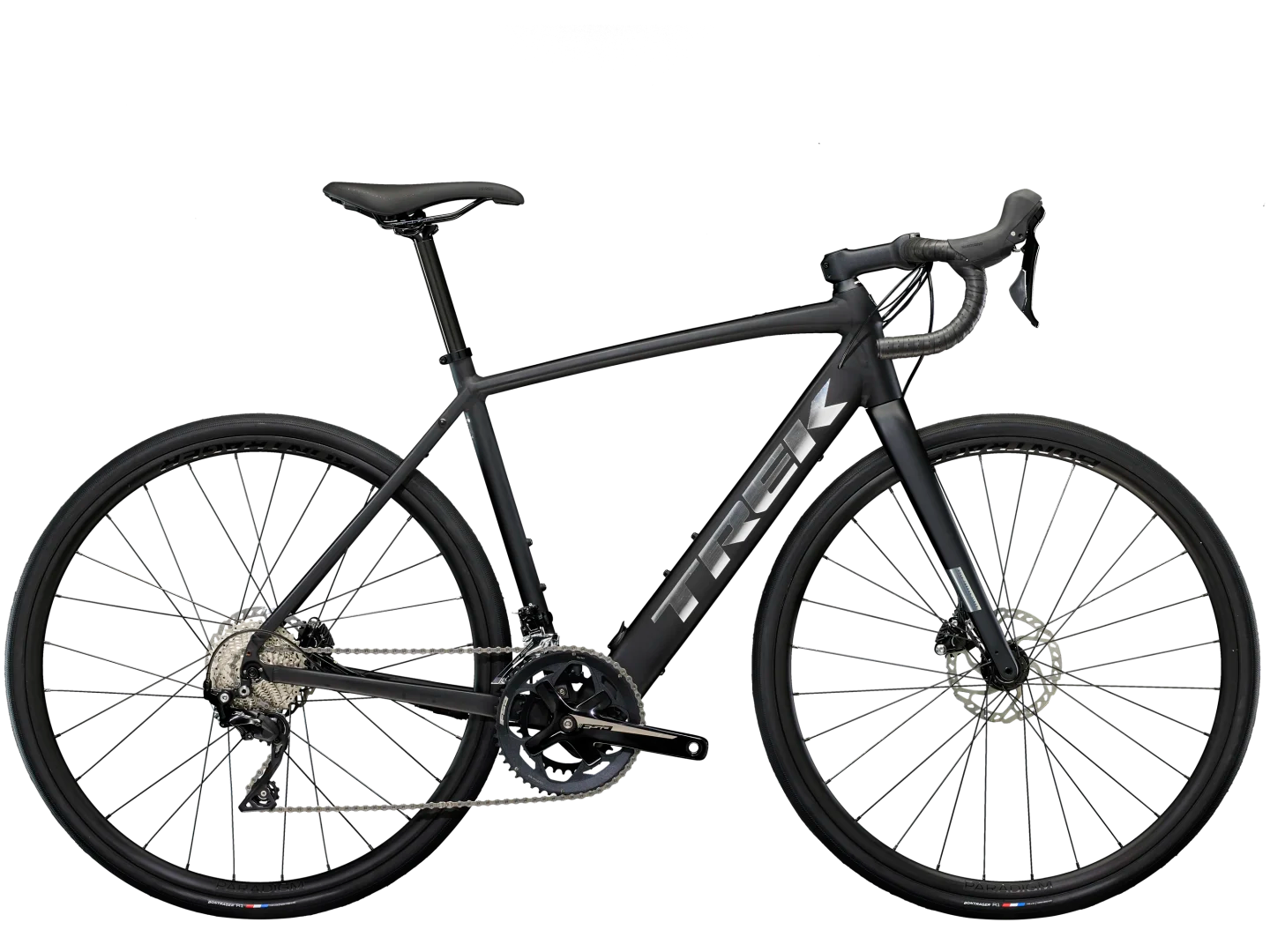

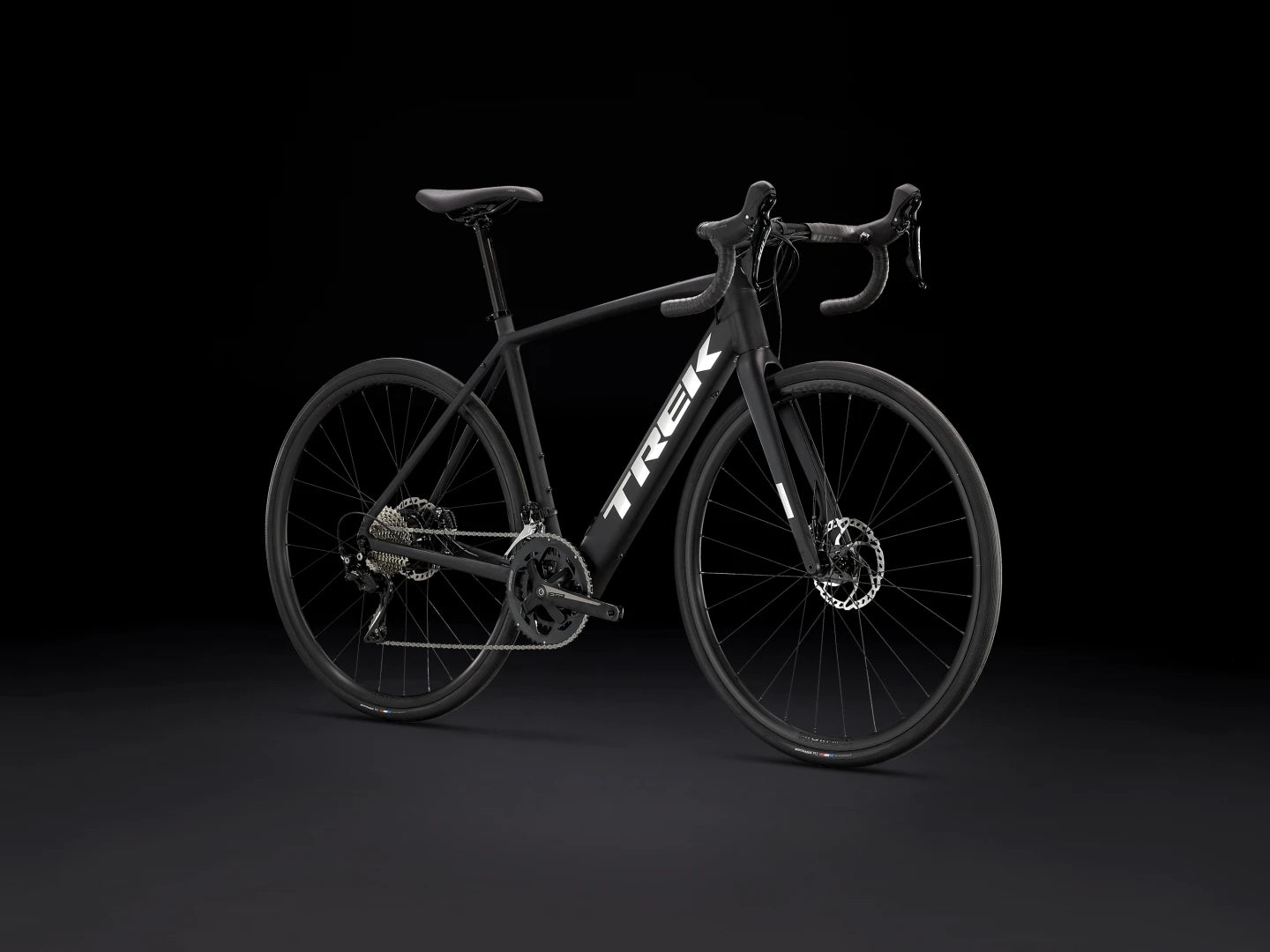

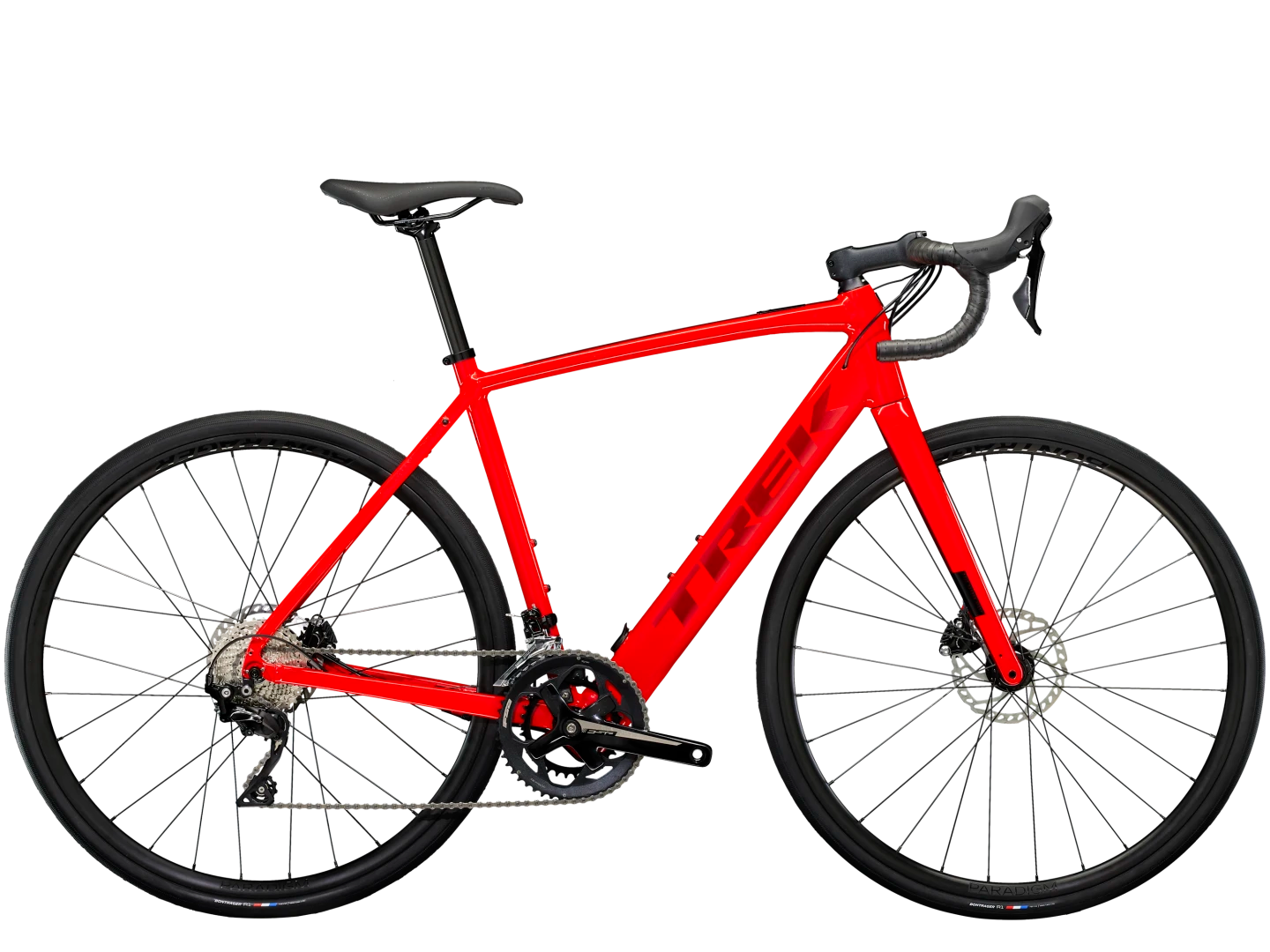

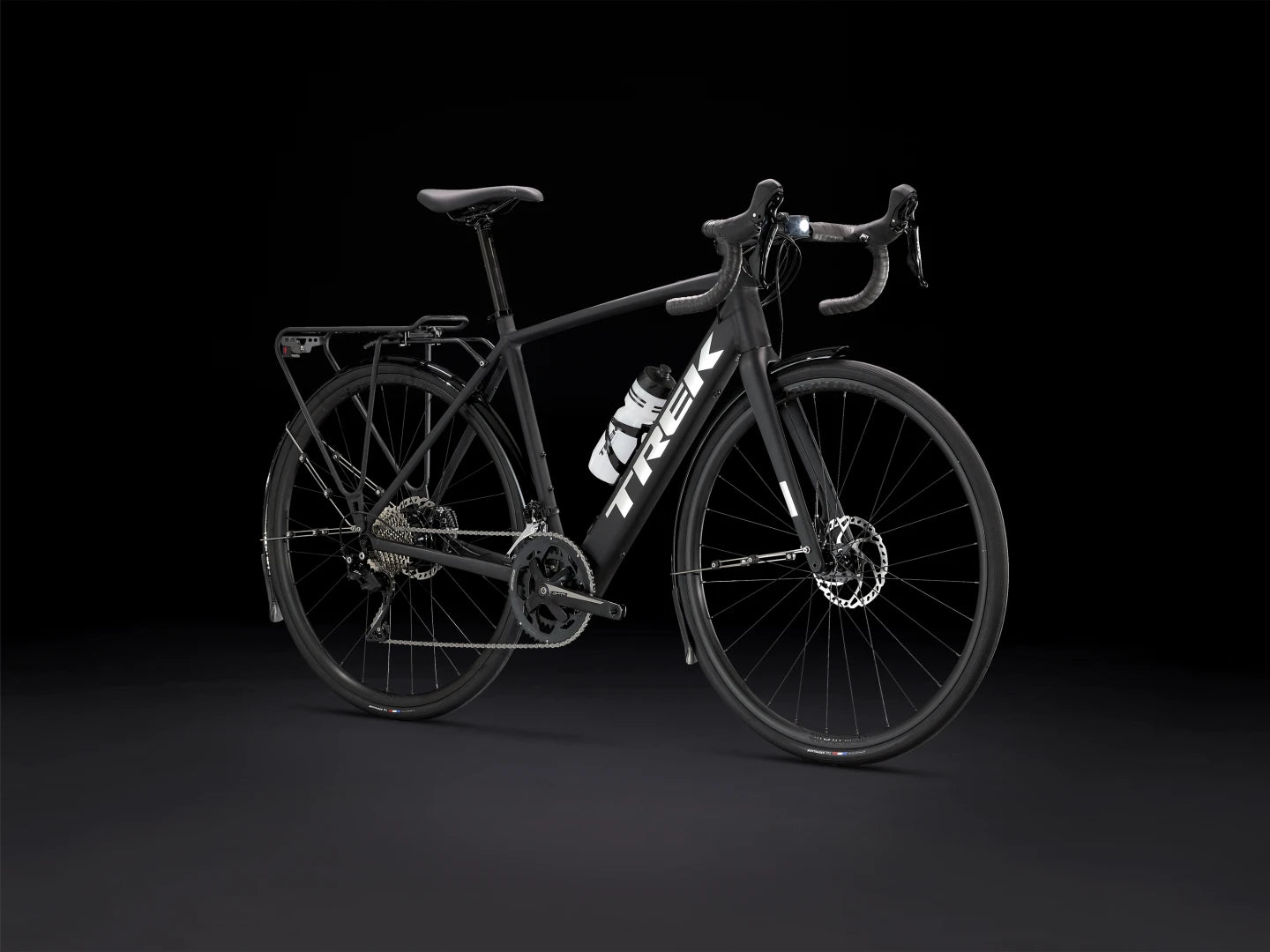

Domane+ AL 5 is a lightweight alloy e-road bike that delivers an authentic road bike feel with the benefit of an electric boost. The intuitive and natural-feeling HyDrive pedal assist system lets you keep pace with friends, crush hilly terrain, or push yourself harder on training rides.

Specifications

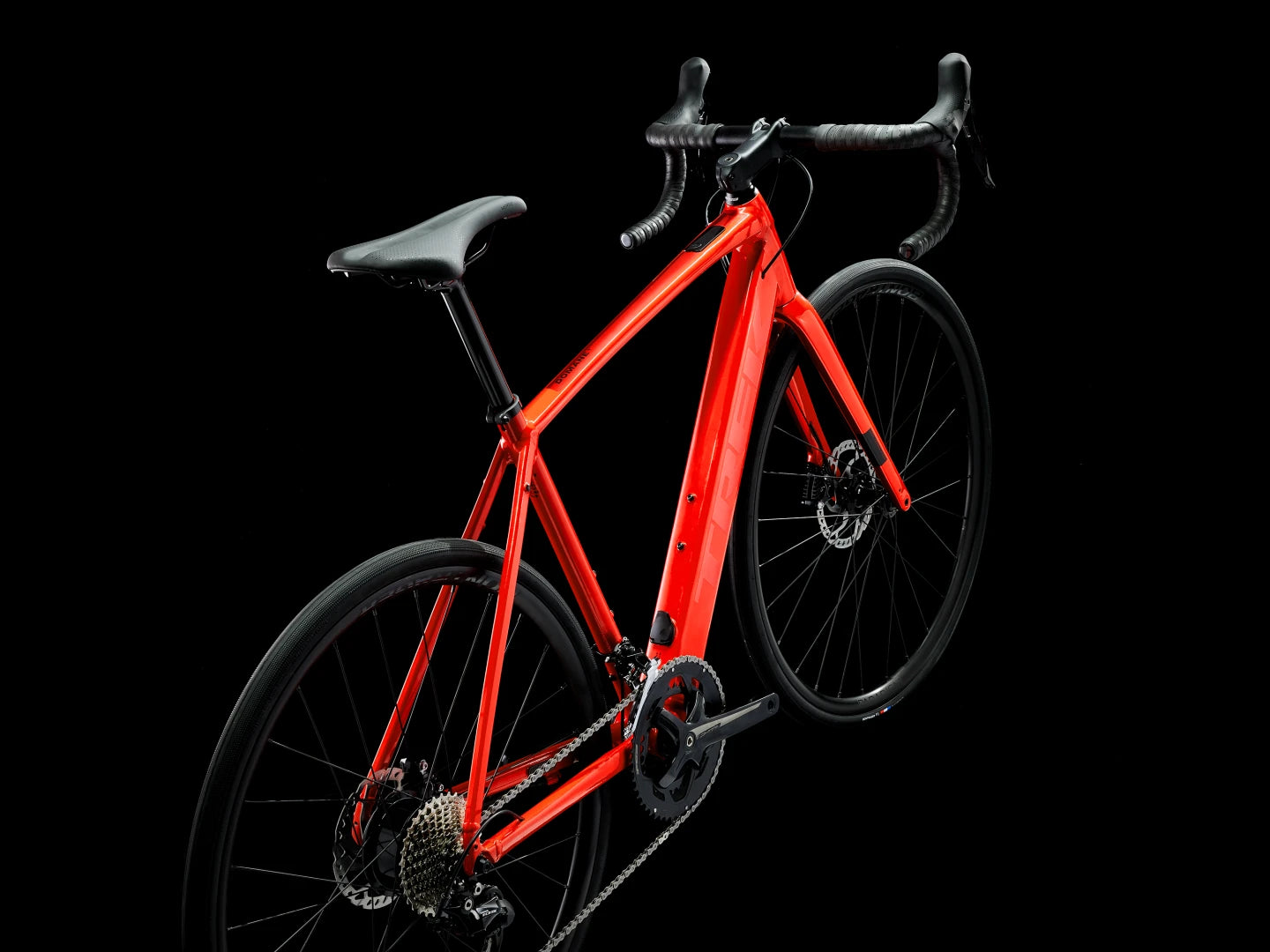

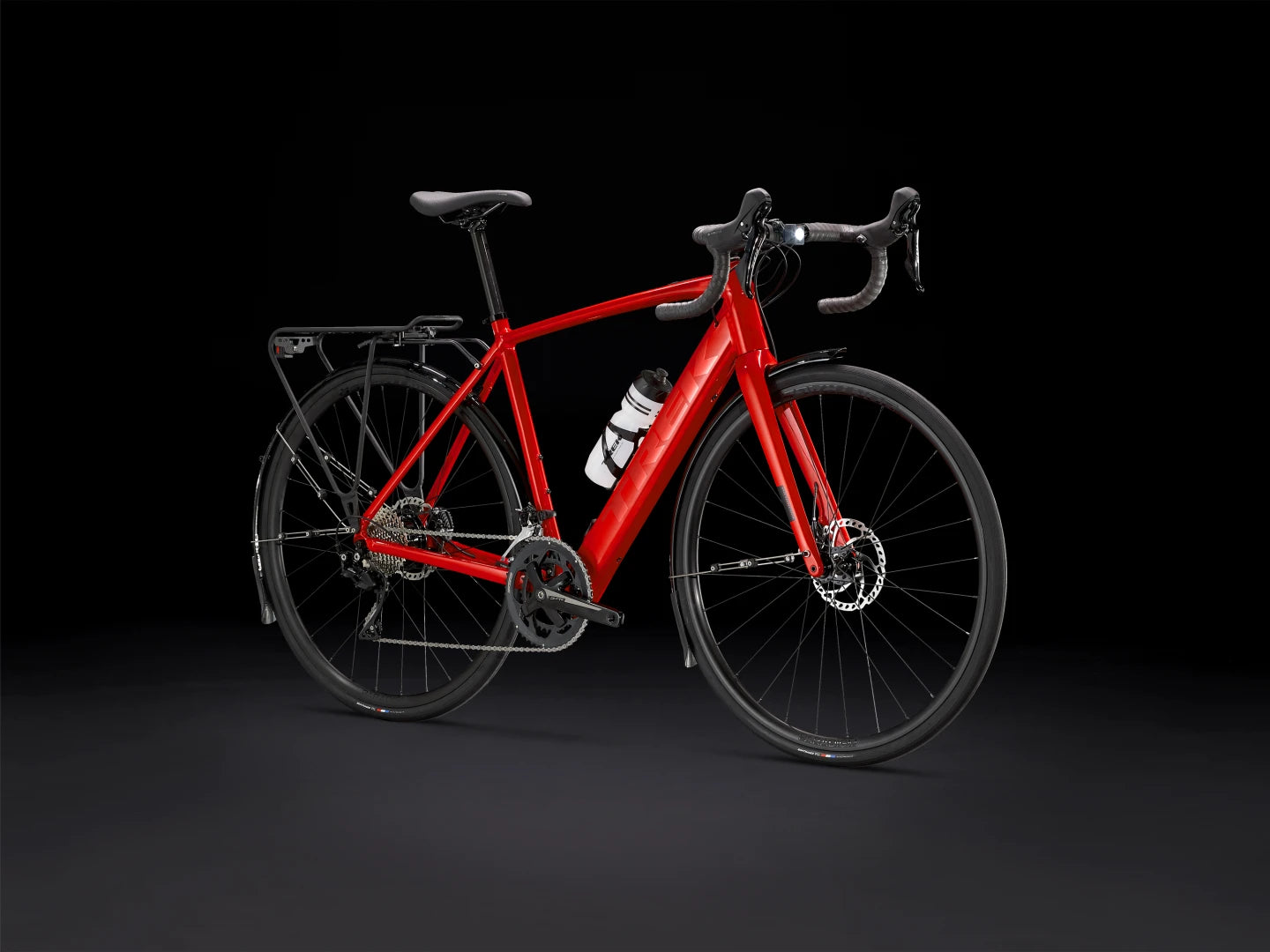

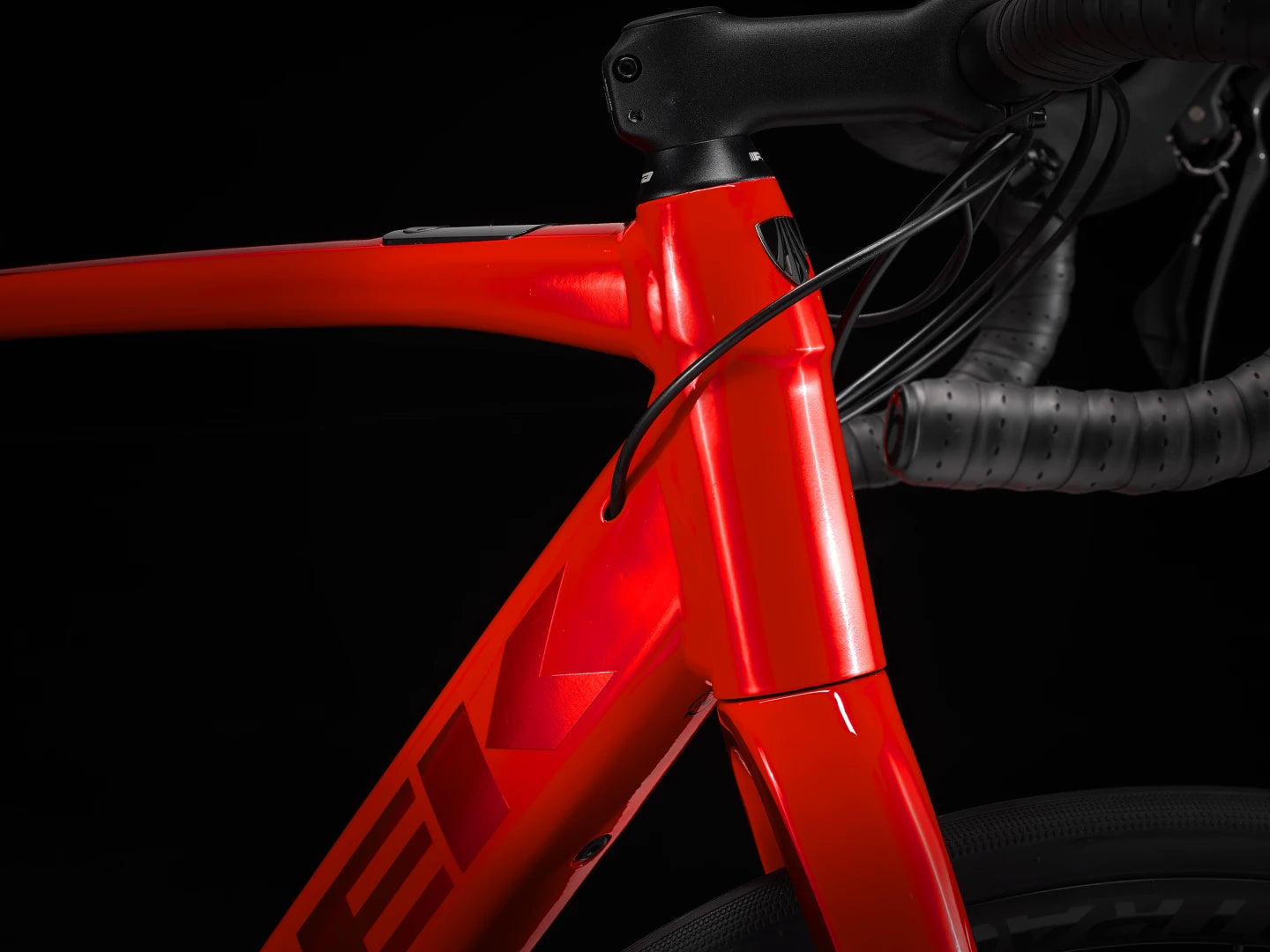

Frame 100 Series Alpha Aluminum, hub drive system, tapered head tube, internal routing, flat mount disc, rack and fender mounts
Fork Domane+ carbon, tapered alloy steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle
Frame fit Endurance

Wheels
Hub front Formula RX-812 alloy, sealed bearing, 6-bolt, 100x12mm thru axle
Skewer front Bontrager Switch thru axle, removable lever

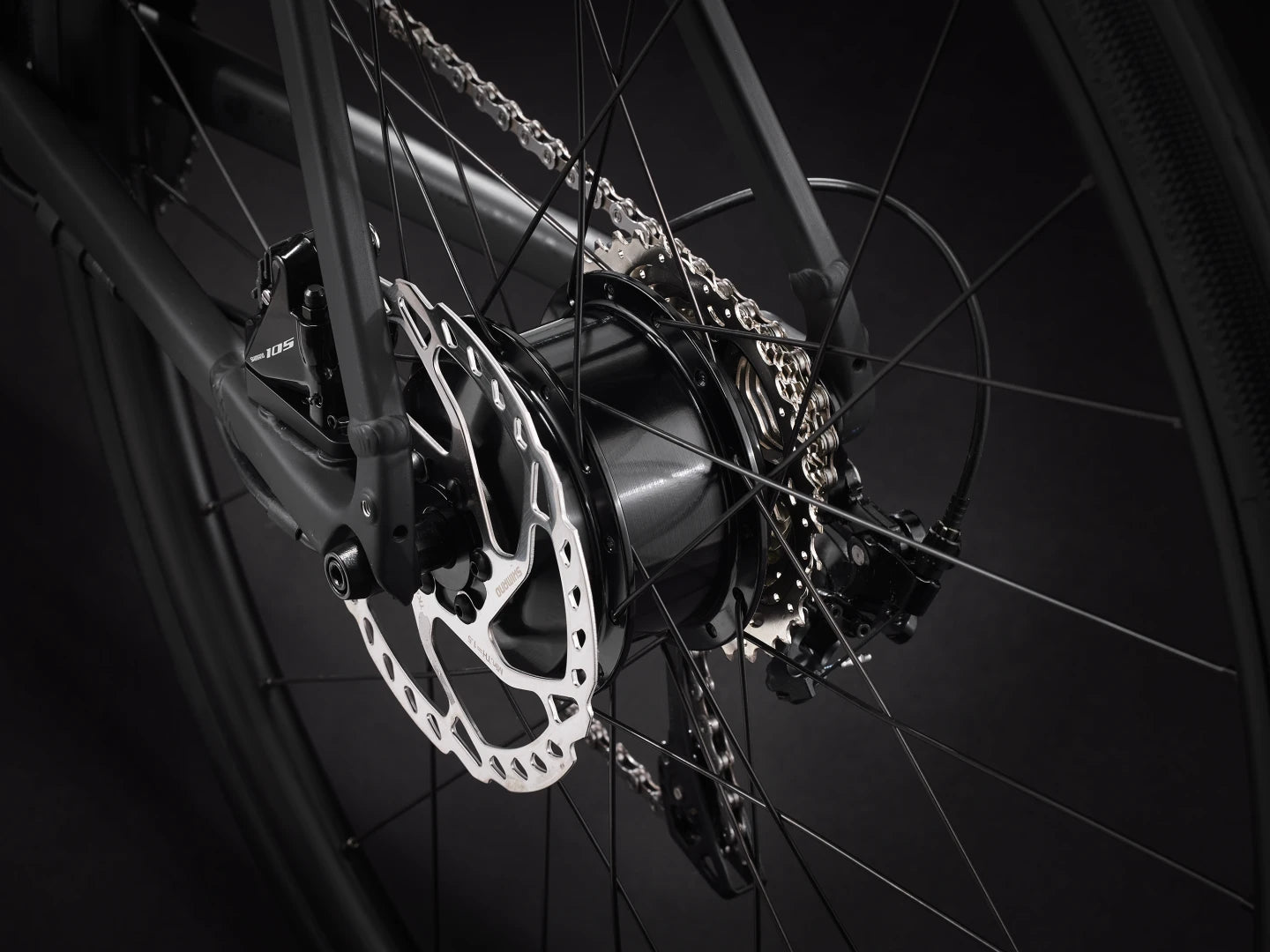

Hub rear Hyena hub drive motor, 40Nm, 250W
Rim Bontrager Paradigm, Tubeless Ready, 28-hole, 21mm width, Presta valve
Tire Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32mm
Max tire size 38mm without fenders, 32mm with fenders

E-system

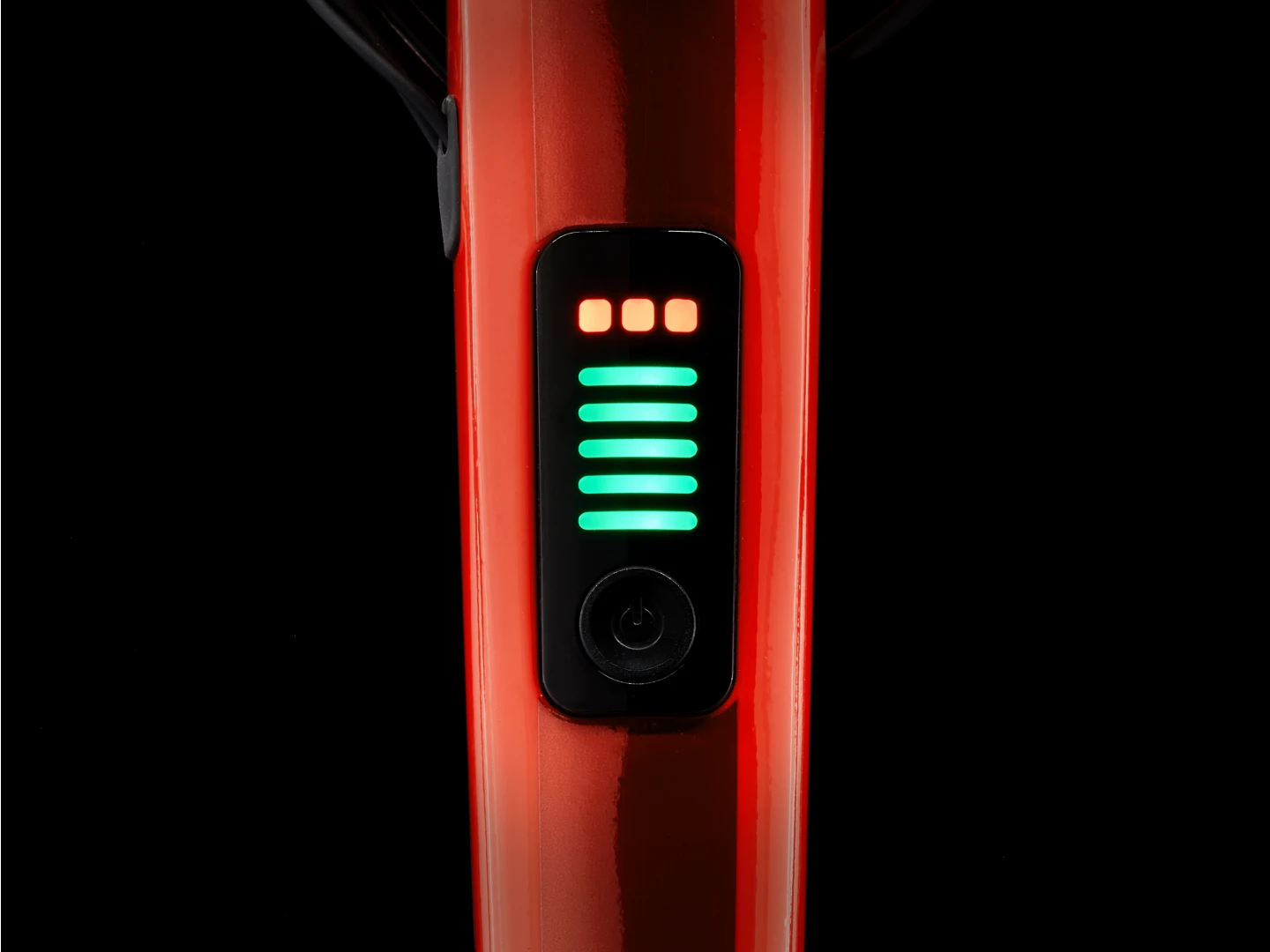

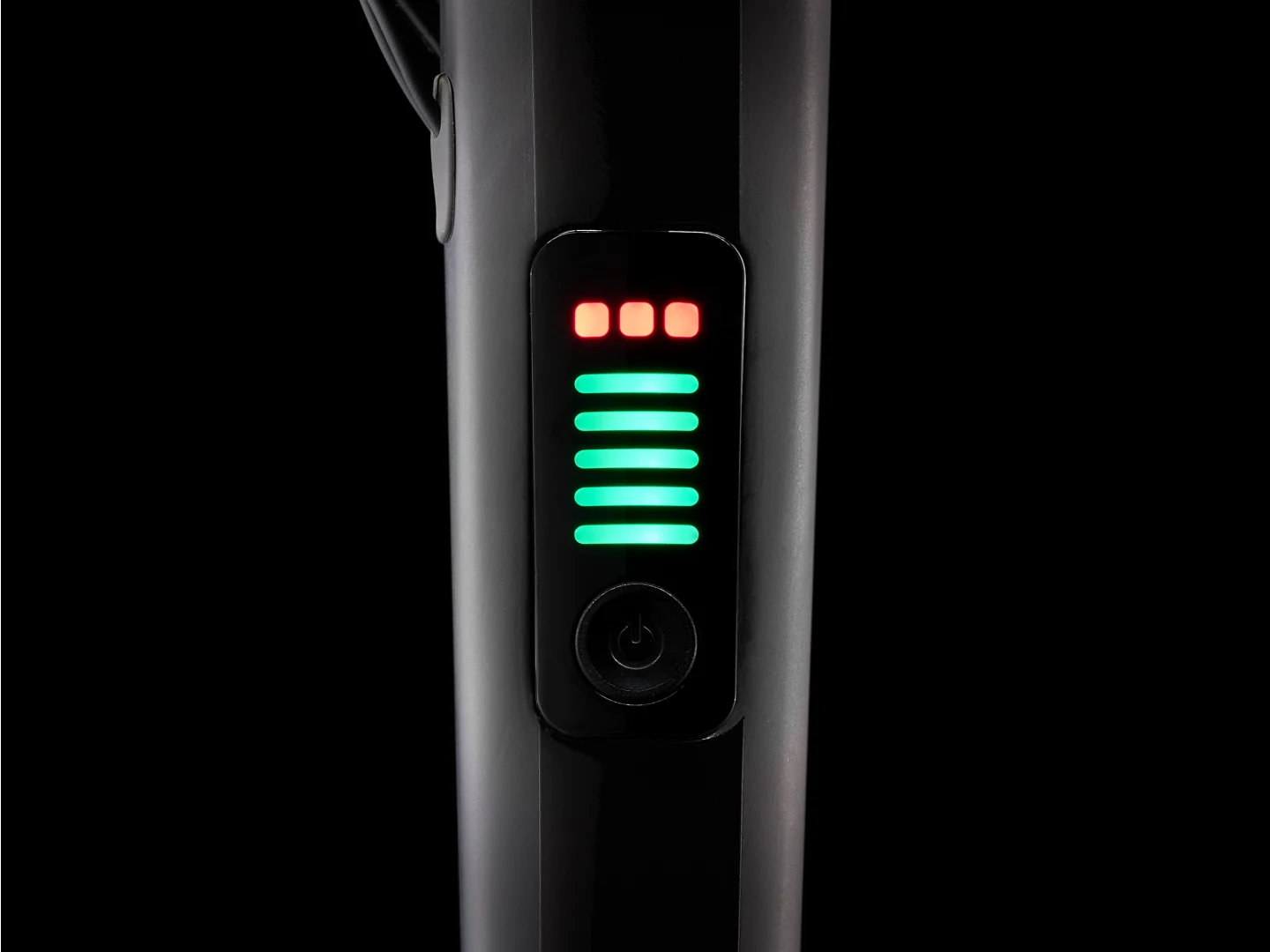

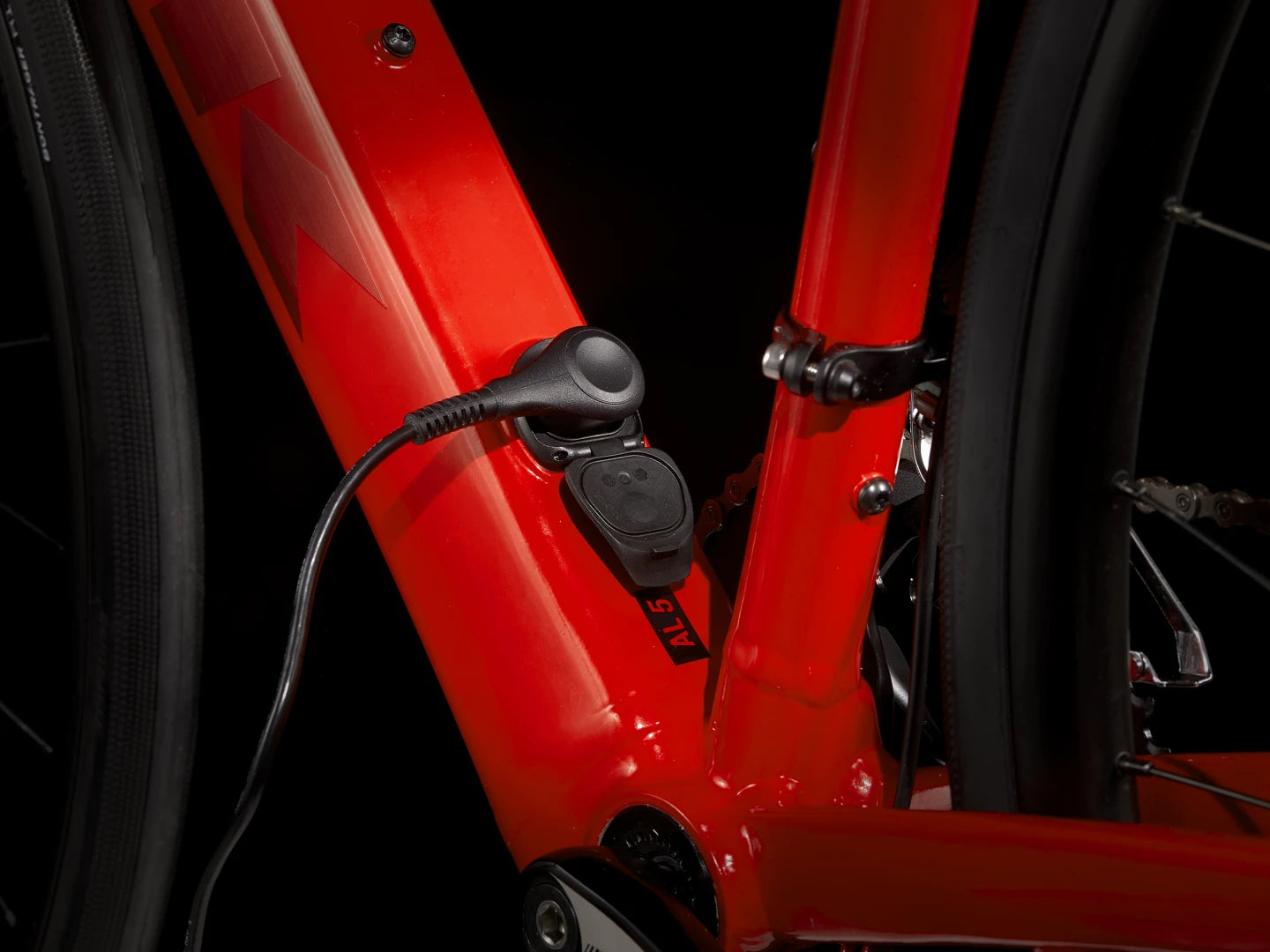

Battery 250Wh, integrated in down tube
Charger 2A, 42V output, 100V-240V AC input

Drivetrain
*Shifter Size: 49, 52
Shimano 105 R7025, short-reach lever, 11 speed
Size: 54, 56, 58, 61
Shimano 105 R7020, 11 speed
Front derailleur Shimano 105 R7000, 31.8mm clamp
Rear derailleur Shimano 105 R7000, long cage, 34T max cog
*Crank Size: 49
FSA Vero Pro, 50/34, 165mm
Size: 52
FSA Vero Pro, 50/34, 170mm
Size: 54, 56
FSA Vero Pro, 50/34, 172.5mm
Size: 58, 61
FSA Vero Pro, 50/34, 175mm
Bottom bracket Torque sensor, threaded, 110mm spindle
Cassette Shimano 105 HG700-11, 11-34, 11 speed
Chain Shimano HG601, 11 speed
Max chainring size 2x: 50/34

Components
*Saddle Size: 49, 52
Bontrager Verse Short Comp, steel rails, 155mm width
Size: 54, 56, 58, 61
Bontrager Verse Short Comp, steel rails, 145mm width
Seatpost Bontrager carbon, 27.2mm, 8mm offset, 330mm length

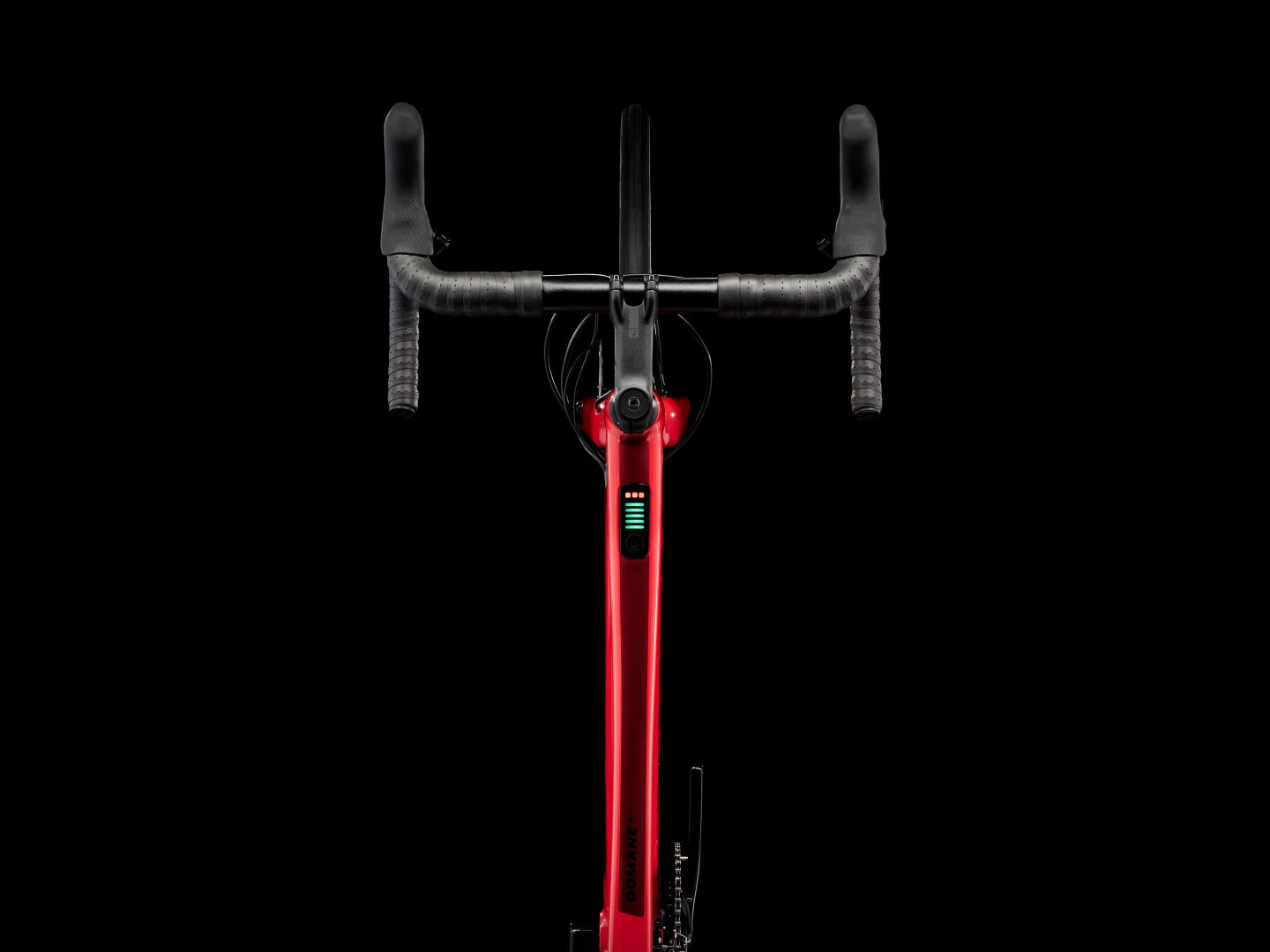

*Handlebar Size: 49
Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 38cm width
Size: 52
Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 40cm width
Size: 54, 56
Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 42cm width
Size: 58, 61
Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 44cm width

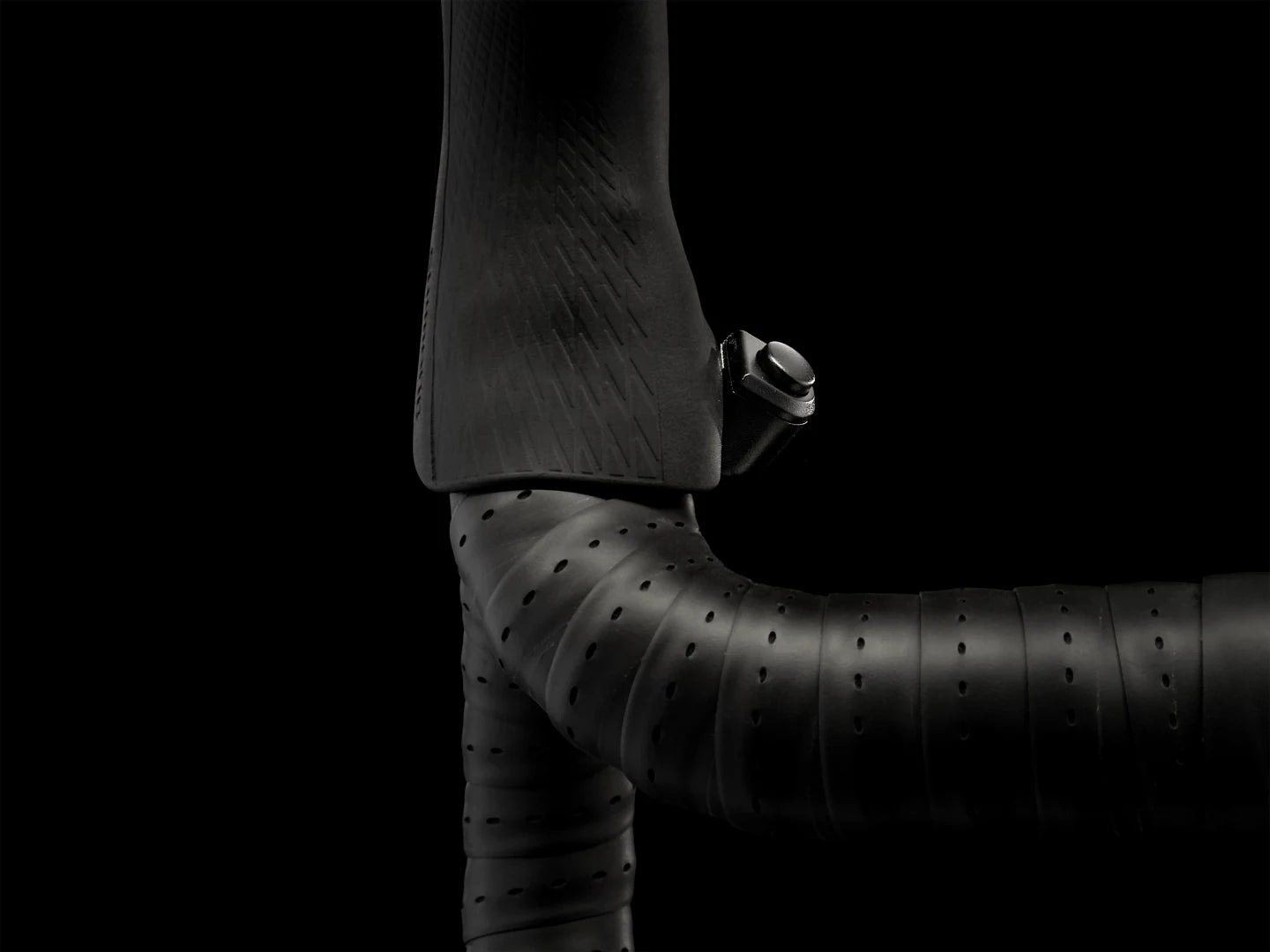

Handlebar tape Bontrager Supertack Perf tape
*Stem Size: 49
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length
Size: 52, 54
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length
Size: 56, 58
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length
Size: 61
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length
Headset FSA Integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom
Brake Shimano 105 hydraulic disc, BR-R7170 flat mount caliper, resin pad w/fin
Brake rotor Shimano RT66, 6-bolt, 160mm
Rotor size Max brake rotor sizes: 160mm front & rear

Weight
Weight 56 - 14.06 kg / 31 lbs
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

Please contact us for any further product specific specifications for this 23 Trek Domane+ AL 5 AU.
