Trek

24 Trek Marlin+ 6

24 Trek Marlin+ 6

Regular price $4,299.99 AUD
Regular price $4,299.99 AUD Sale price $4,299.99 AUD
Sale Sold out
Color
Size

Shipping Info

Bikes will be available instore, or shipped and assembled to your local distributer.

All other items will be shipped by Australia Post Standard Shipping.

Or, feel free to pick up your order instore!

If you have any troubles, give us a call on 0480 349 805 to discuss the 24 Trek Marlin+ 6

Servicing

Uncover the Perfect Service Level for your Bike, from Every 3 to 6 Months, to Every 12 Months.

Click here to Learn More!

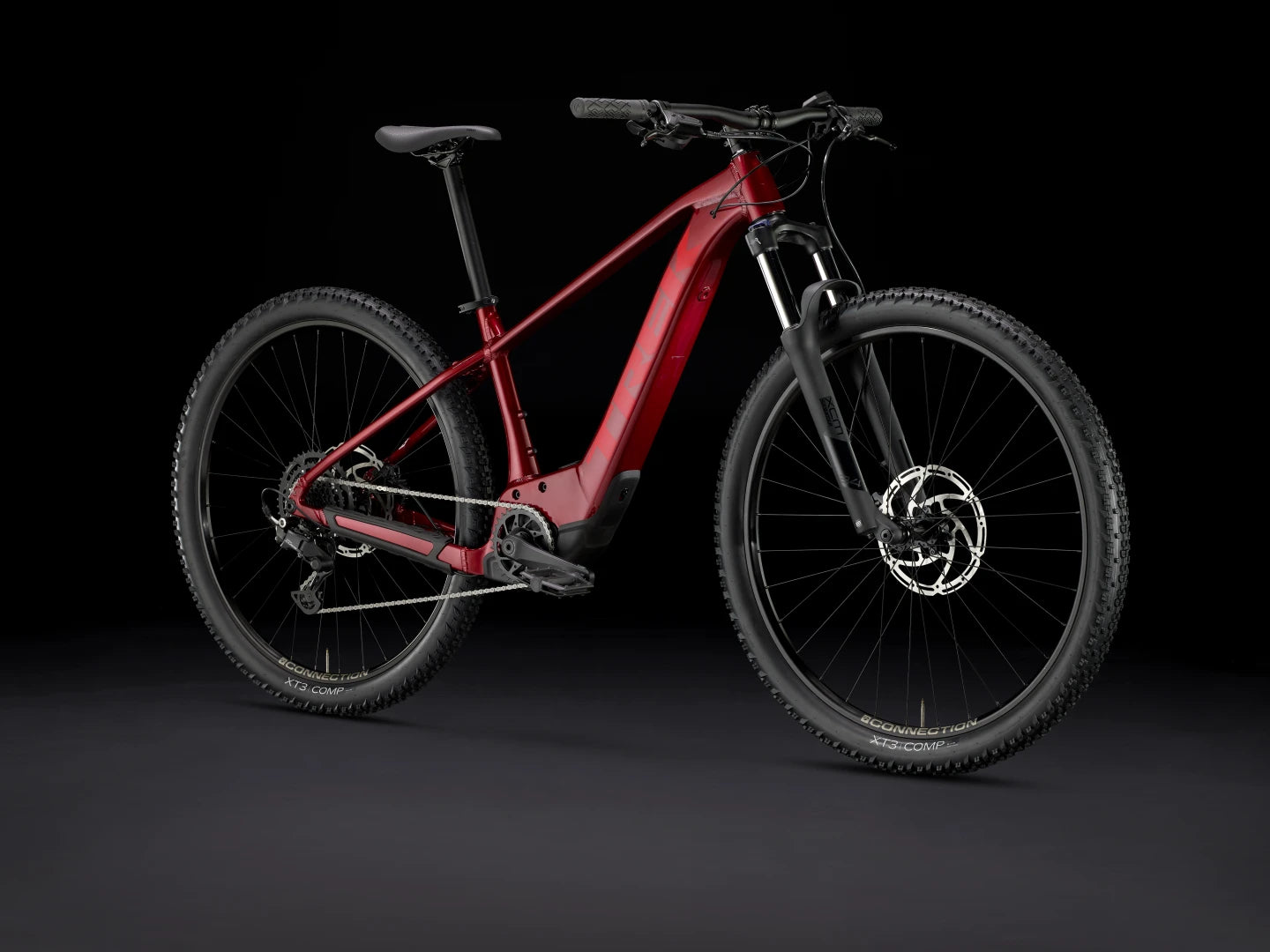

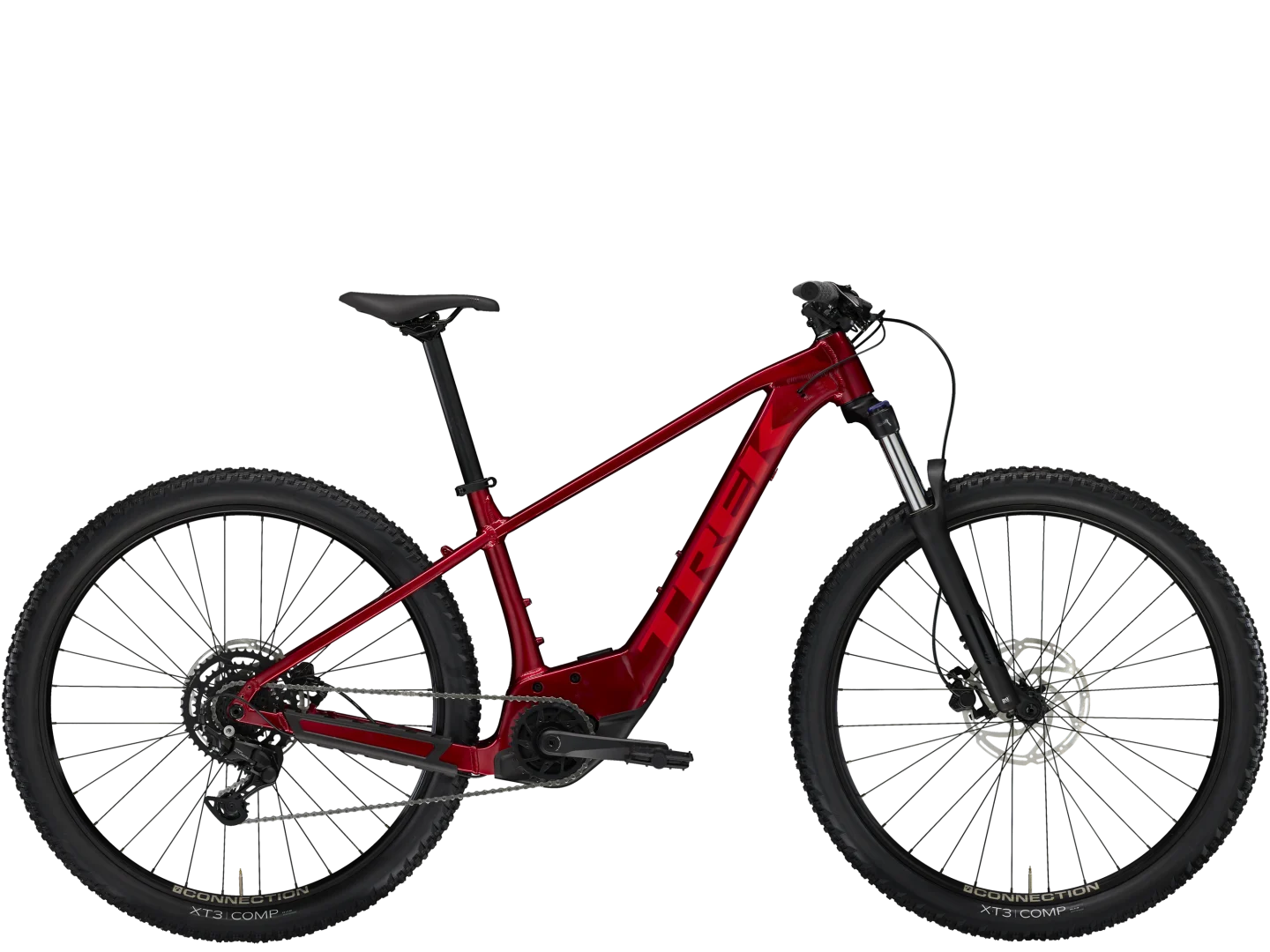

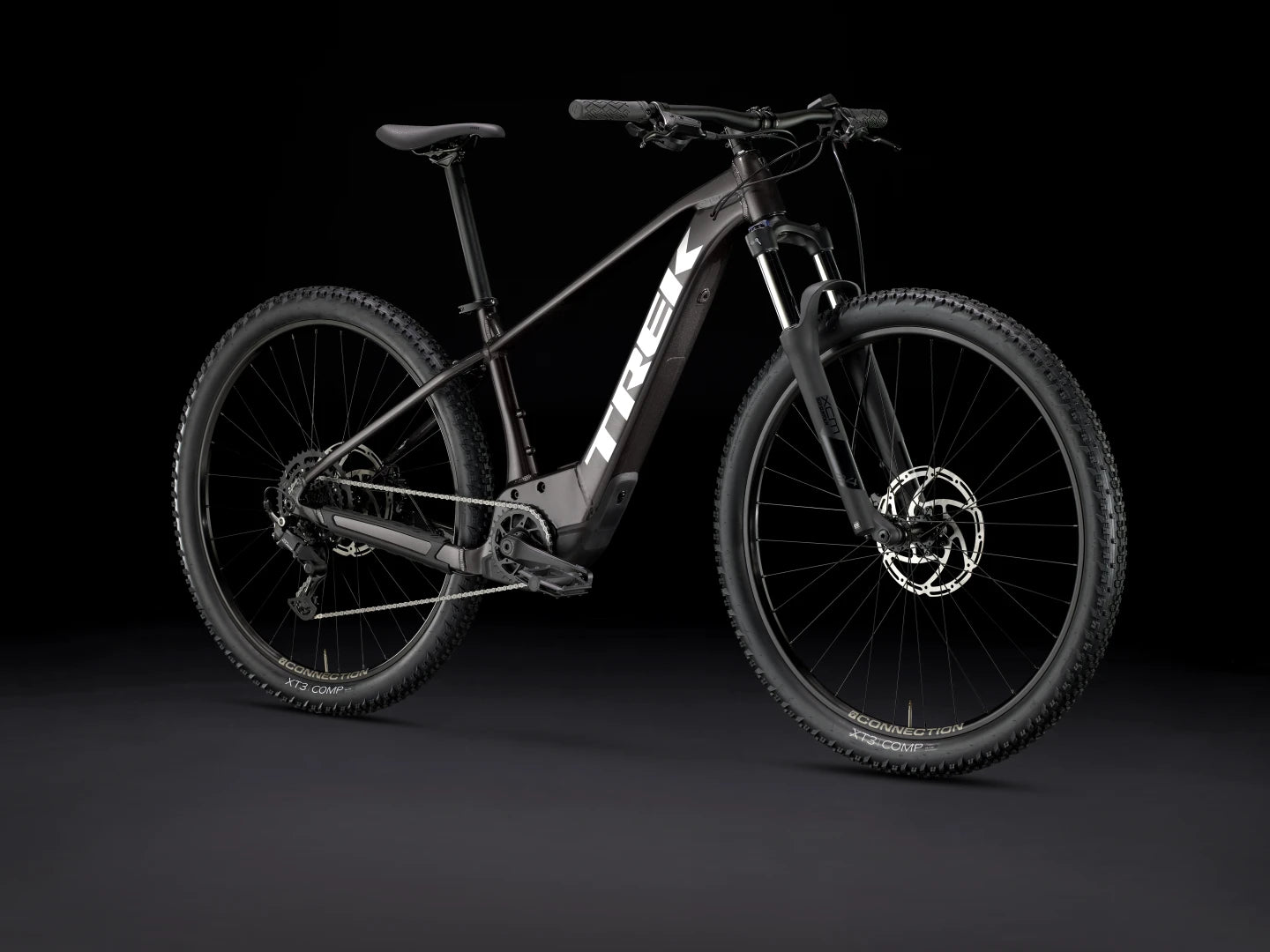

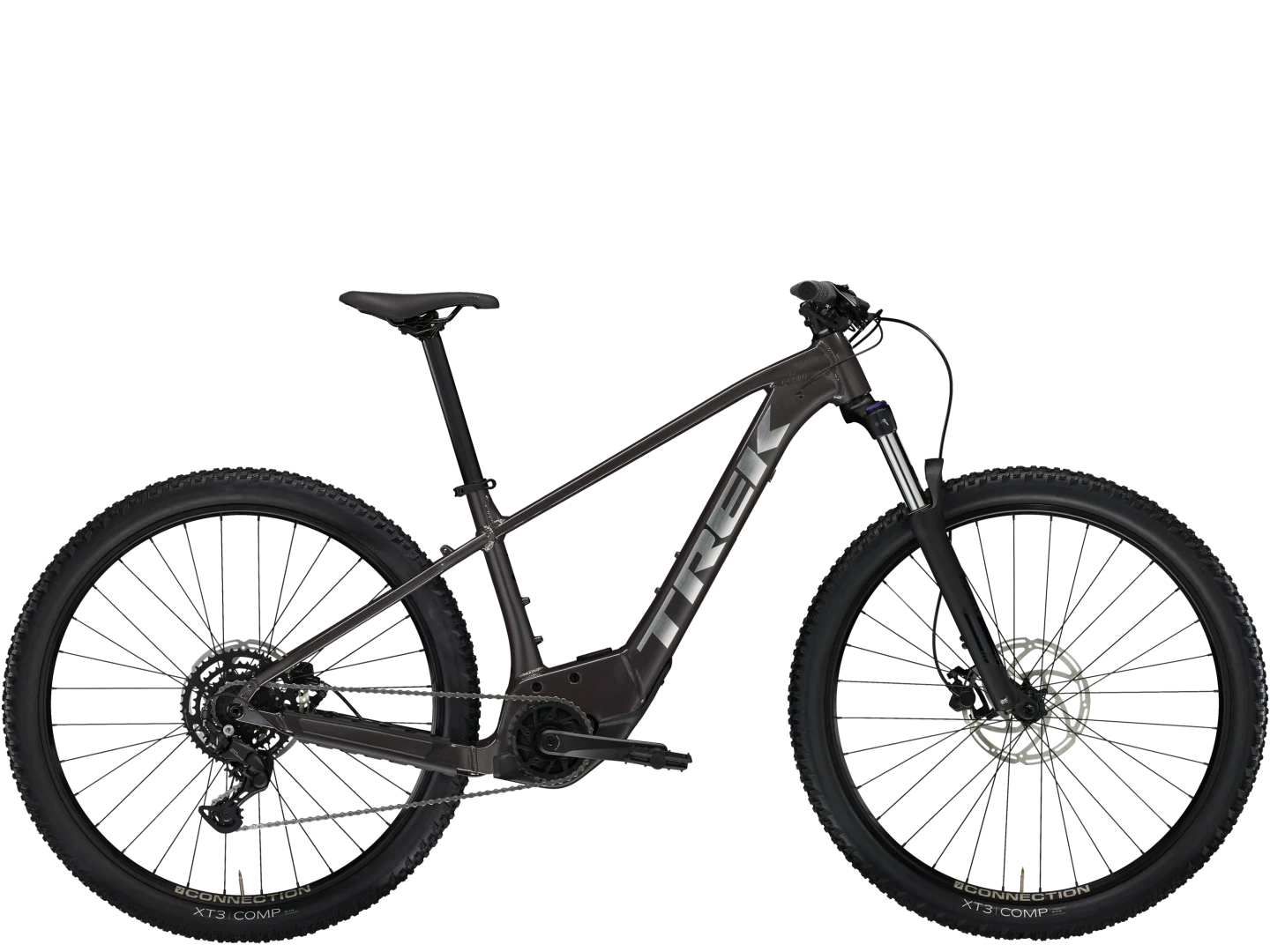

Marlin+ 6 is an electric mountain bike that's ready to power up your trail rides without breaking the bank. It's equipped with the same fun and confident geometry as the non-electric Marlin, with the added boost of Bosch's Active Line Plus drive system. A 120mm suspension fork soaks up rocks, roots, and potholes on your ride, while 9-speed Shimano CUES is durable and reliable for wherever you roll.

Specifications

*Frame Size: XS

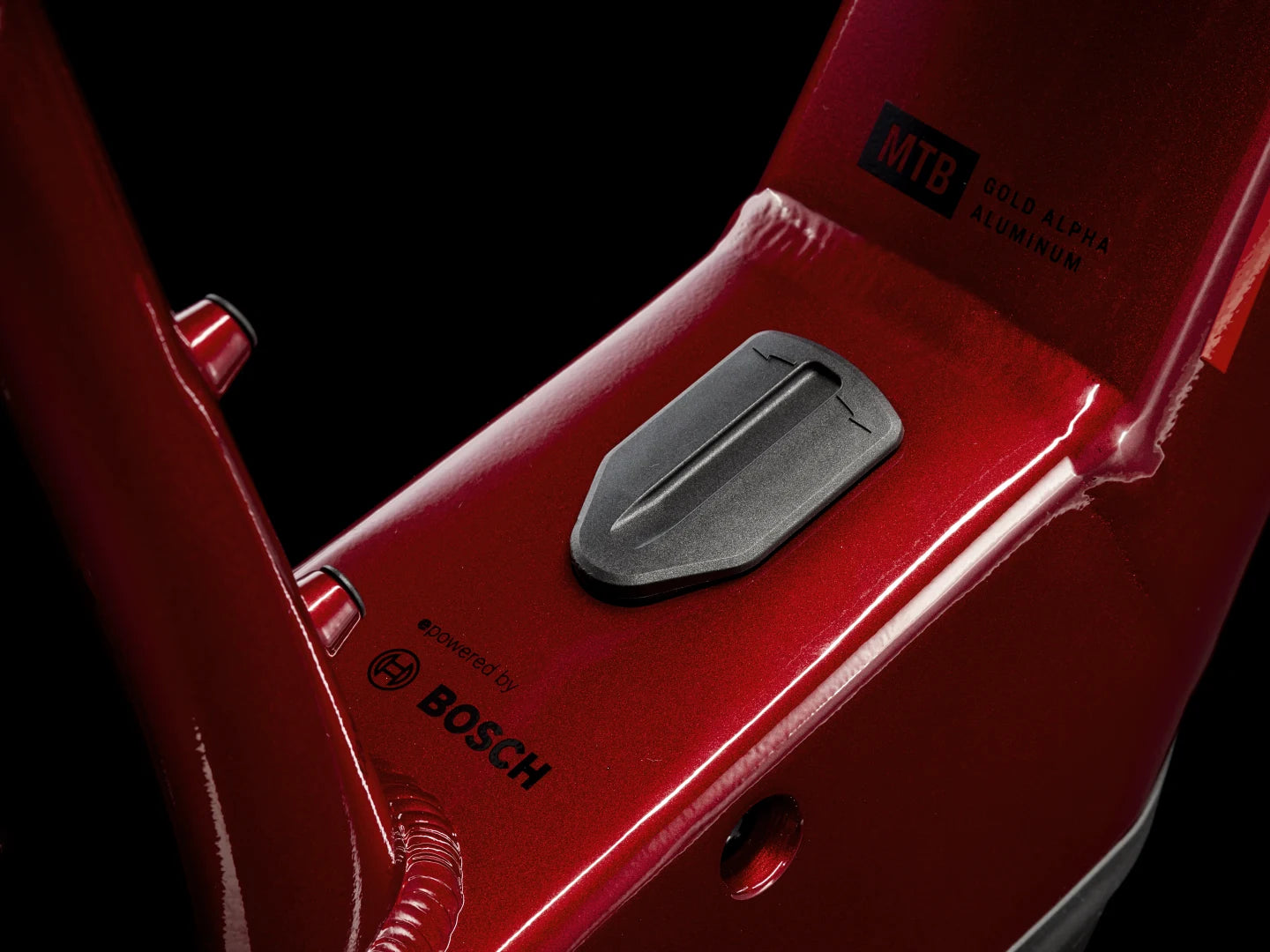

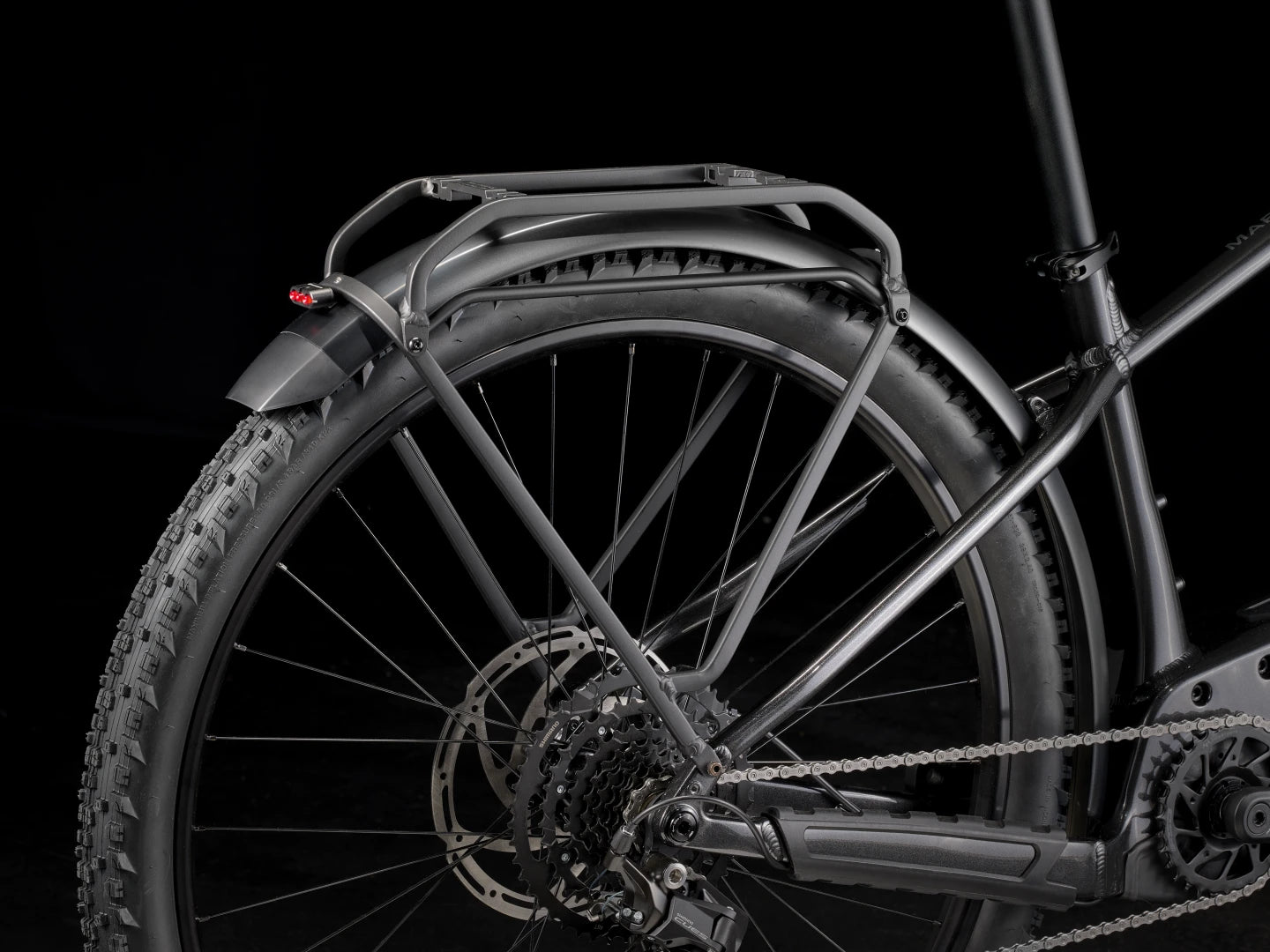

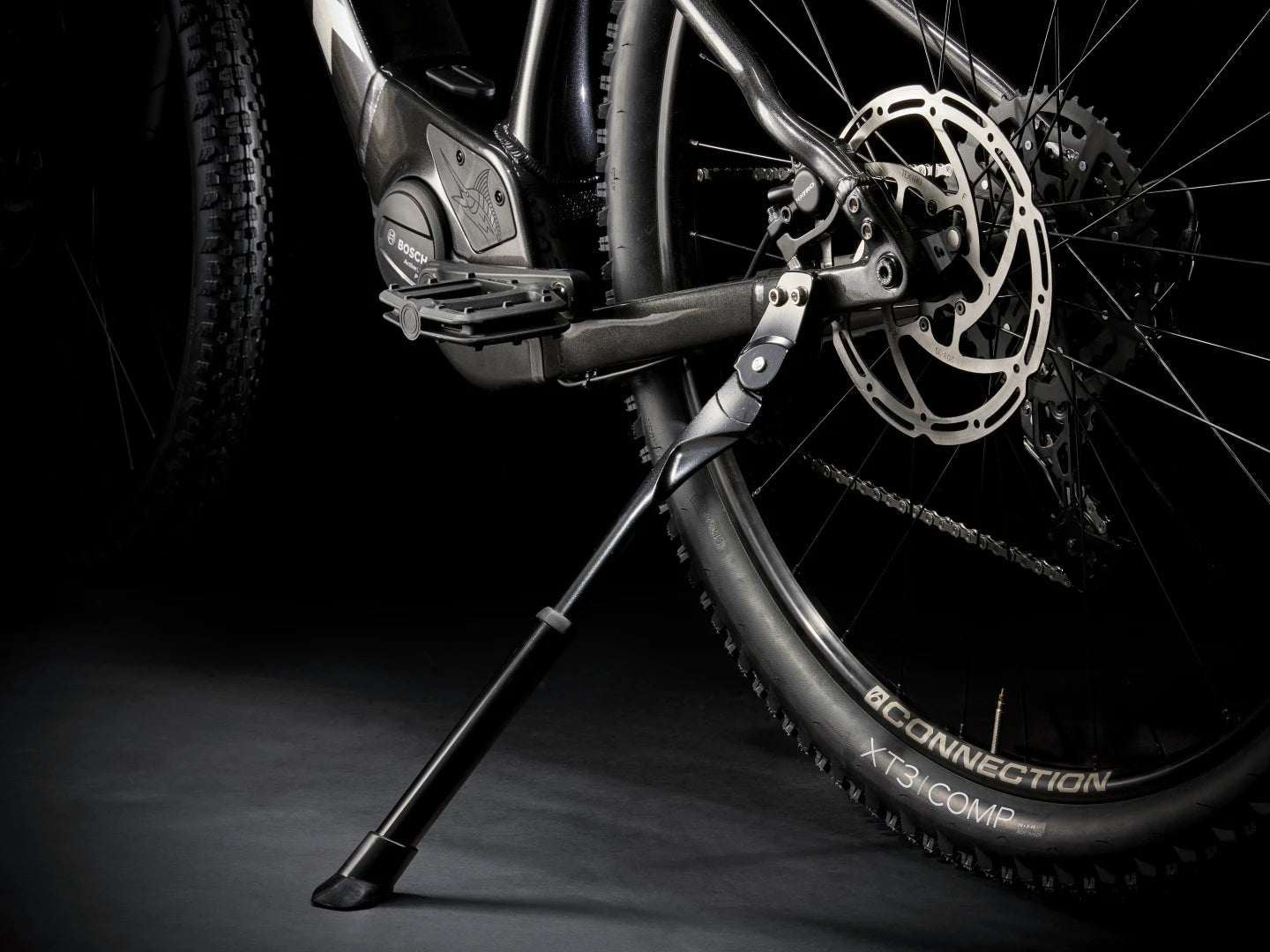

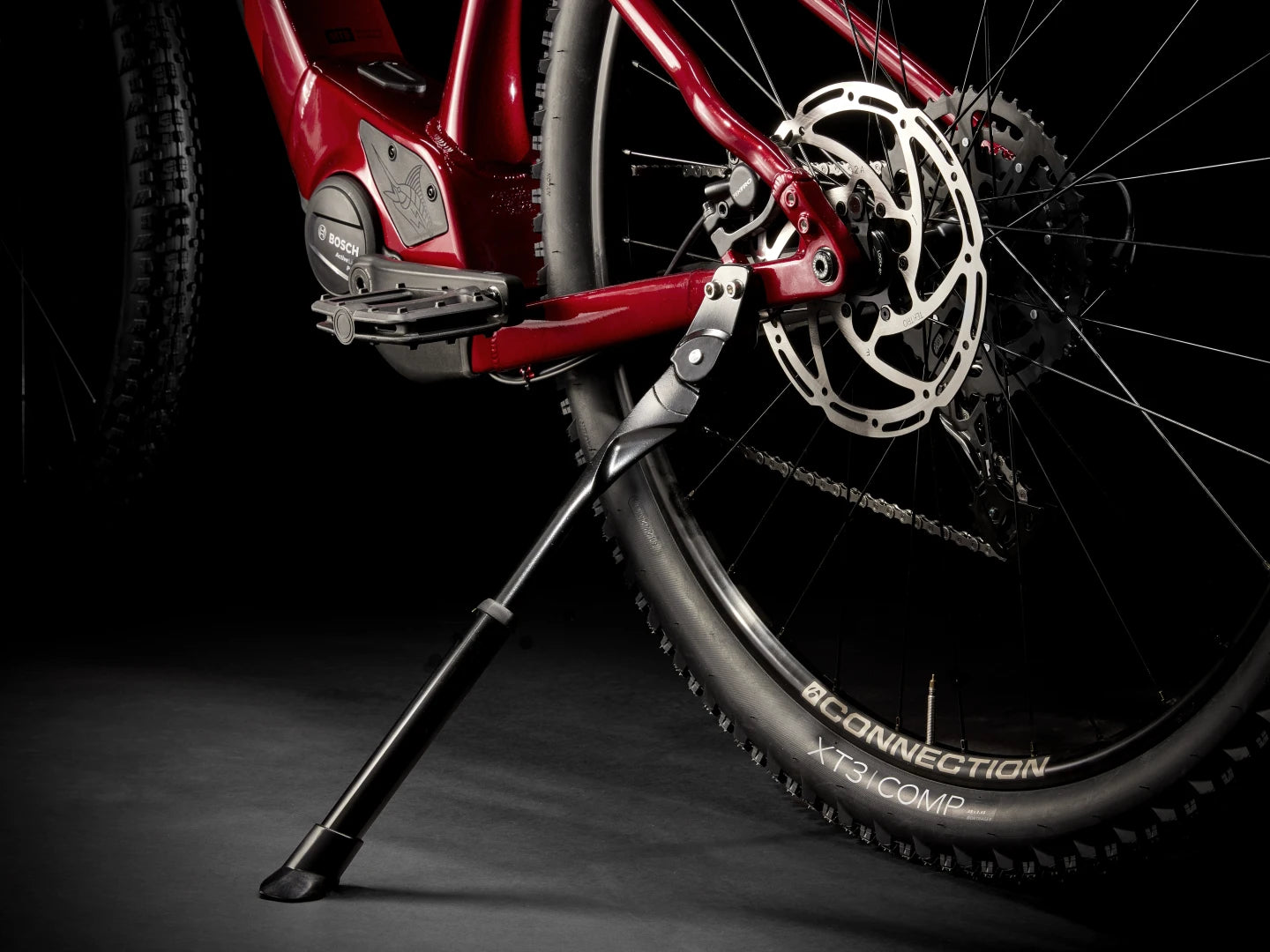

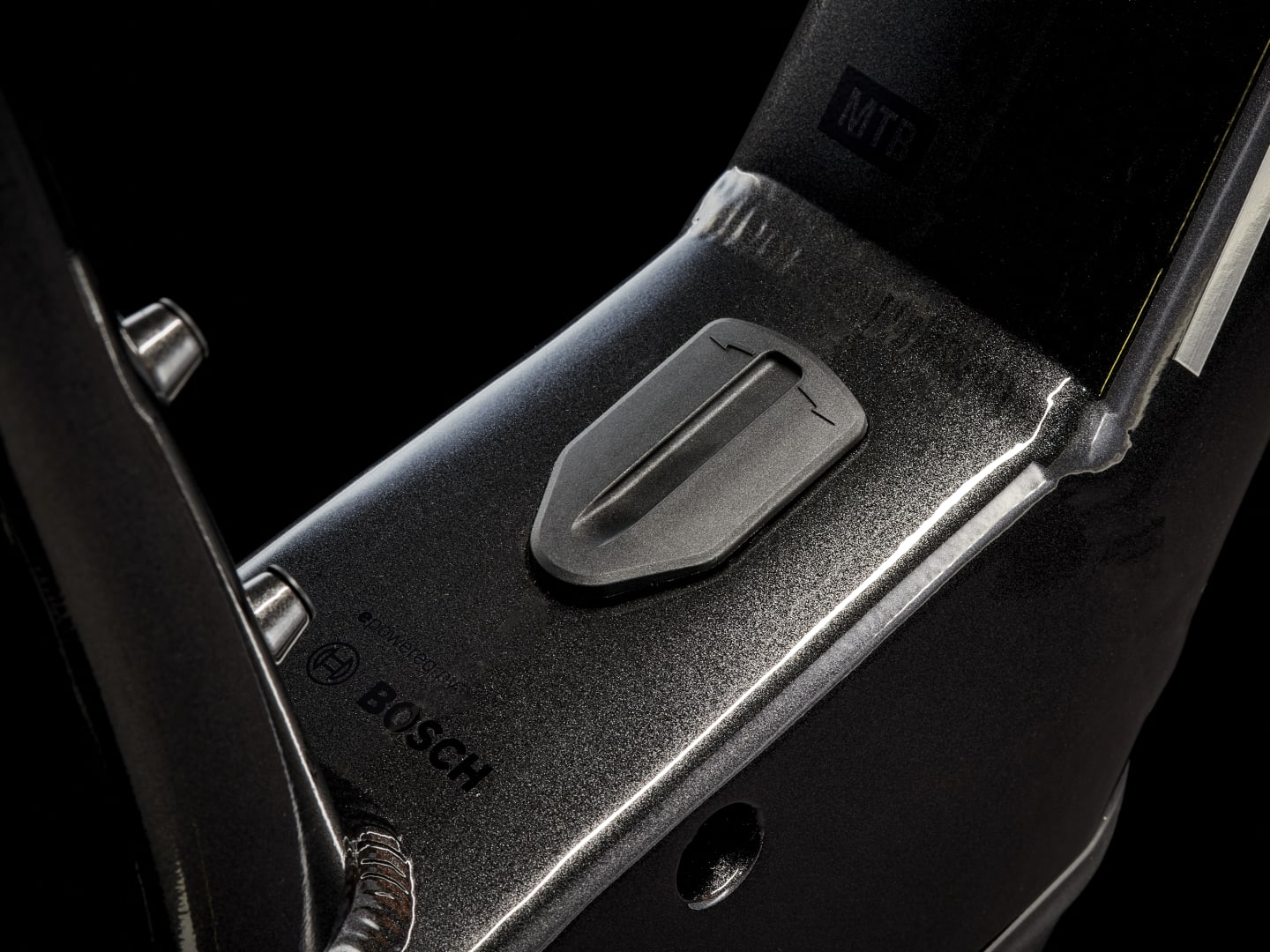

Alpha Gold Aluminum, curved top tube, tapered head tube, internal routing, rack, fender, and kickstand mount, UDH, Boost148, 12mm thru axle
Size: S , M , L , XL

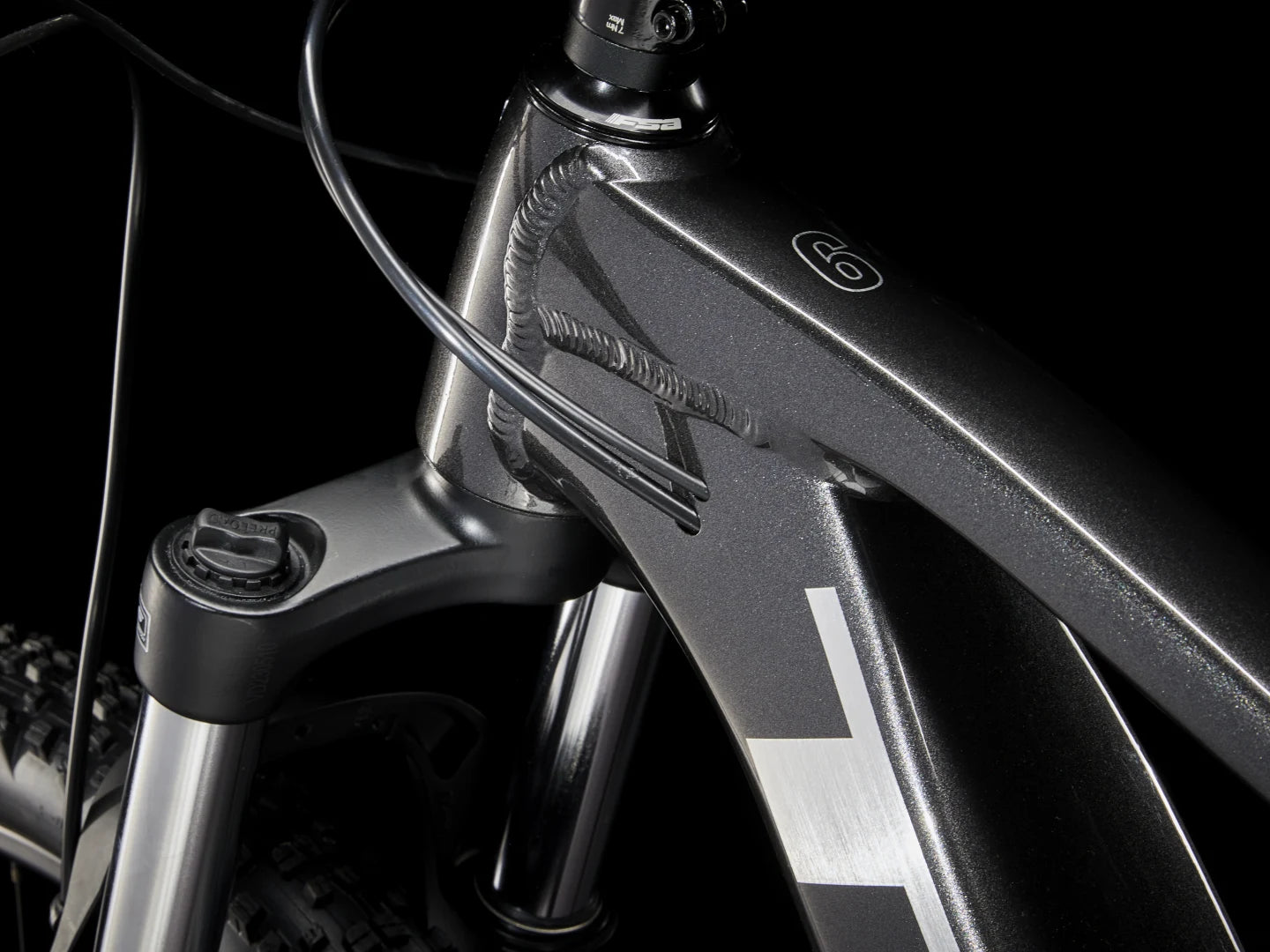

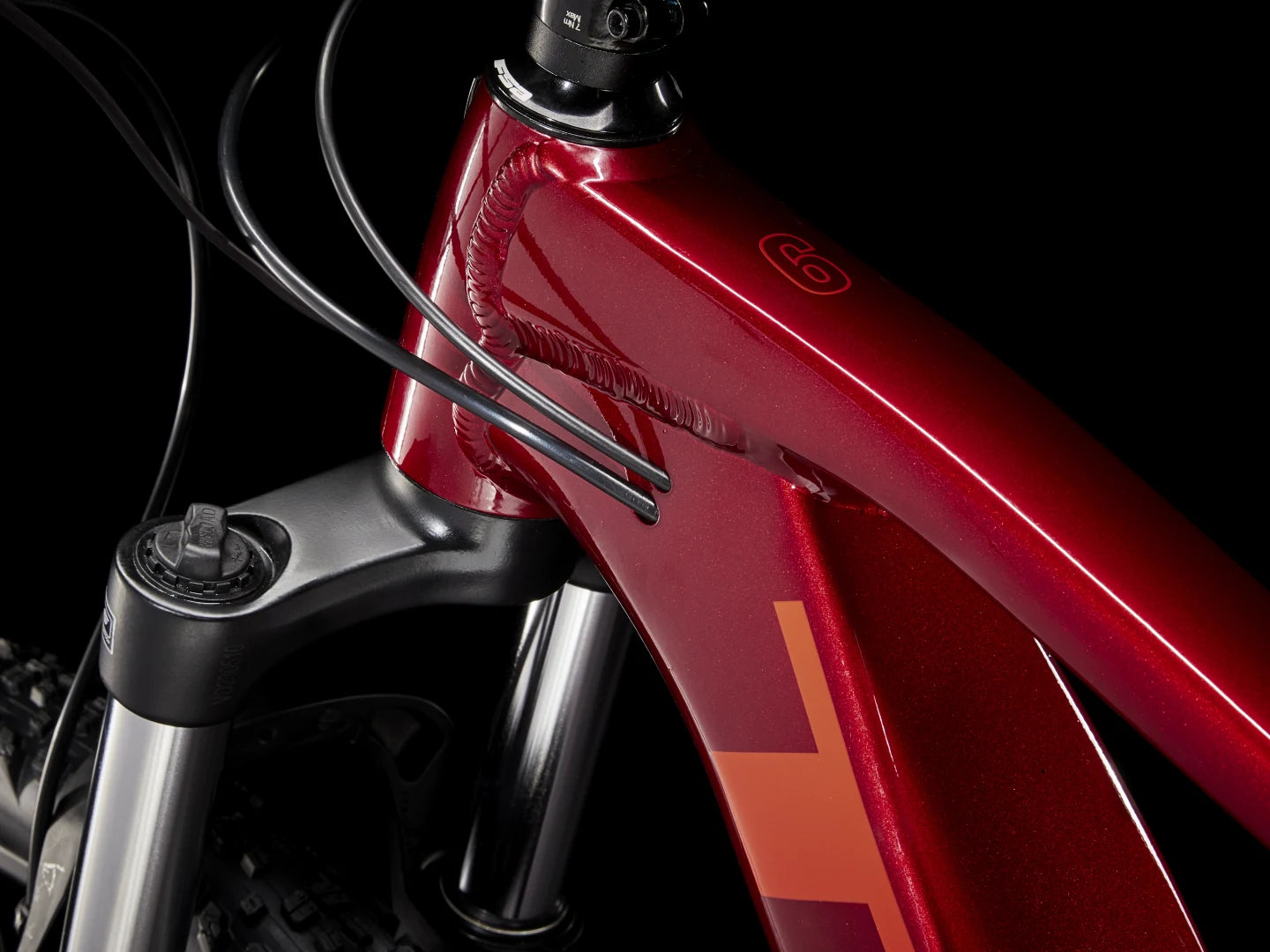

Alpha Gold Aluminum, tapered head tube, internal routing, rack, fender, and kickstand mount, UDH, Boost148, 12mm thru axle
*Fork Size: XS
SR Suntour XCM 34, coil spring, preload, lockout, tapered steerer, 44mm offset, Boost110, 15mm thru axle, 100mm travel
Size: S , M , L , XL

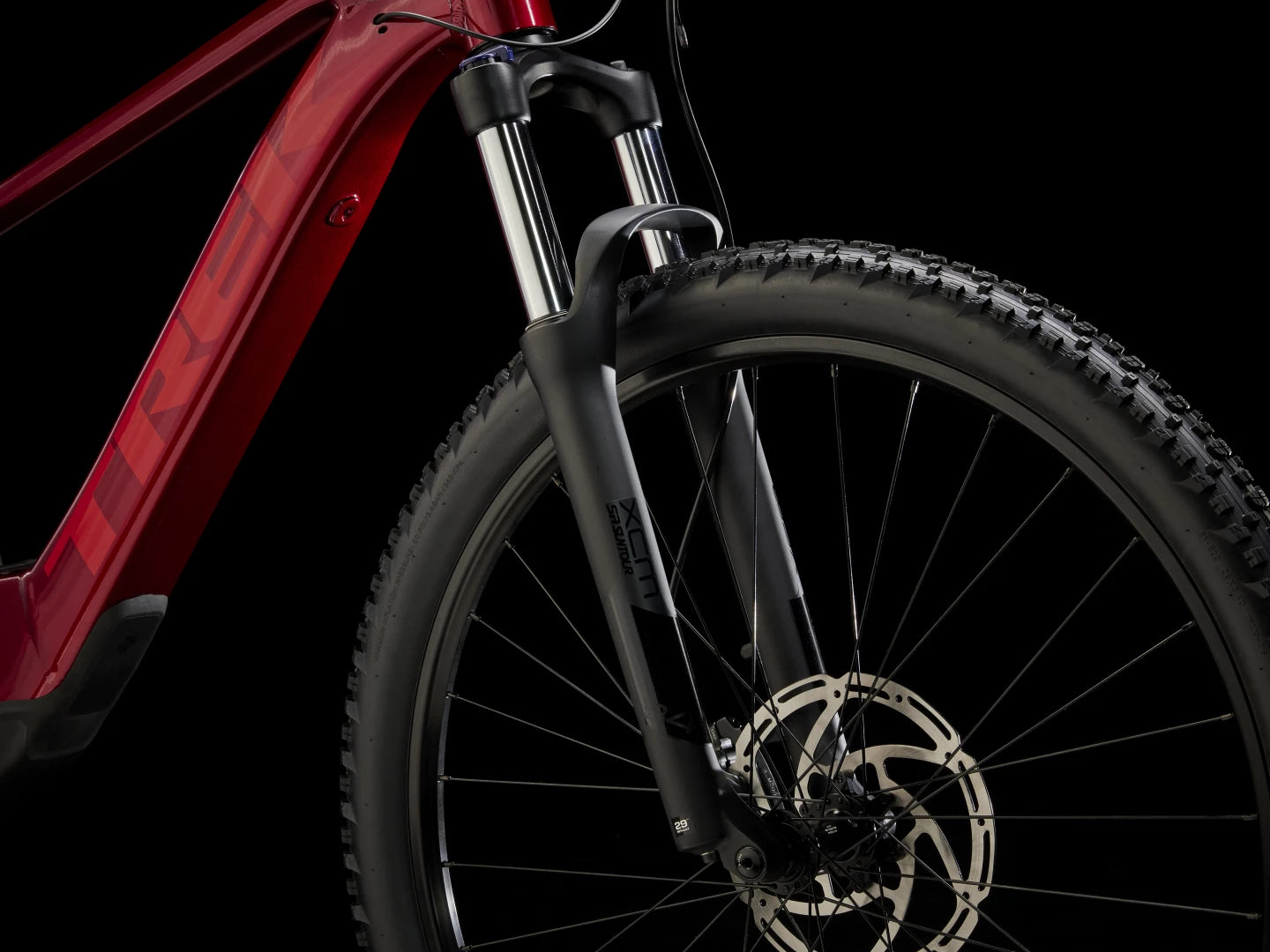

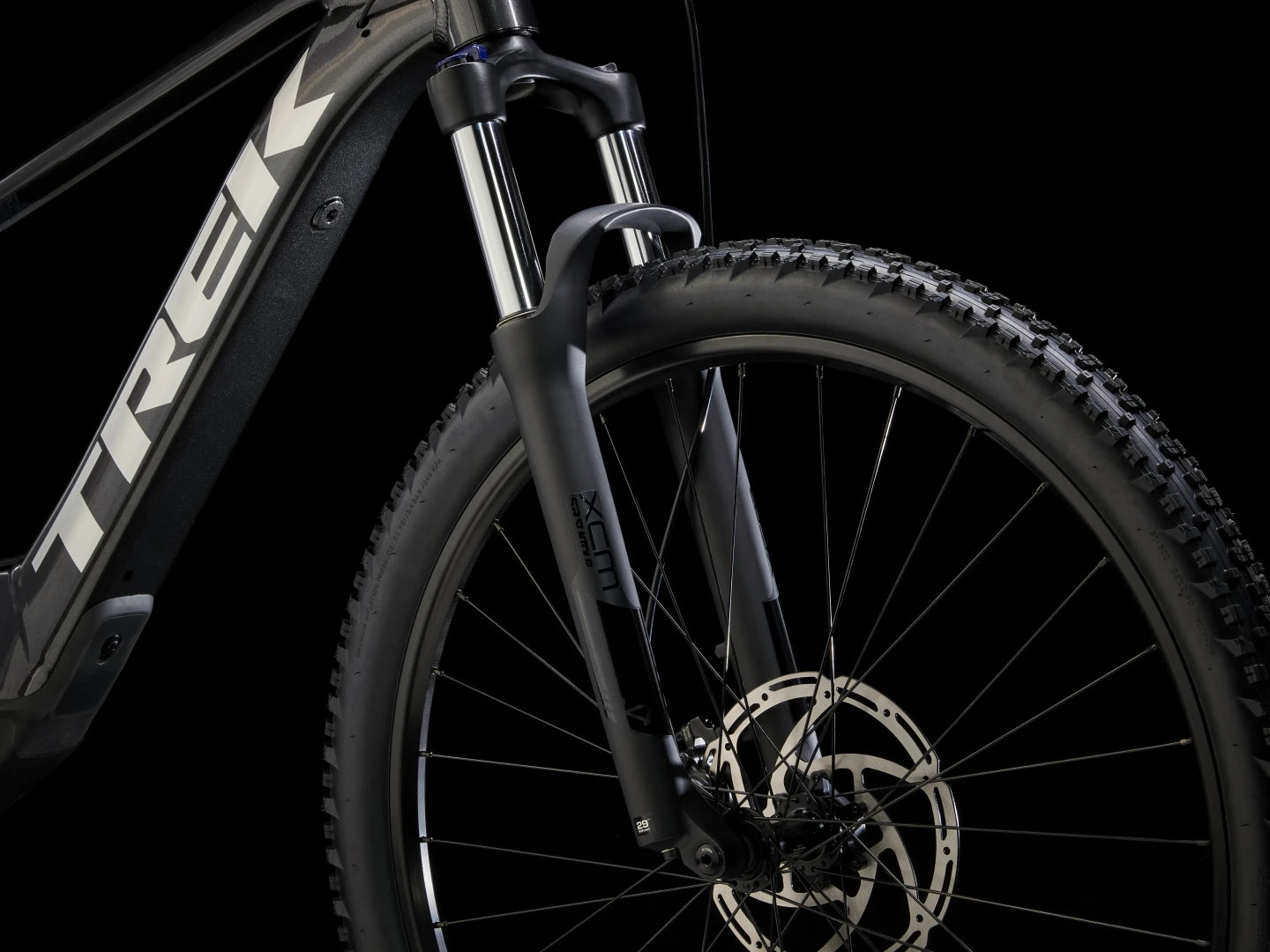

SR Suntour XCM 34, coil spring, preload, lockout, tapered steerer, 44mm offset, Boost110, 15mm thru axle, 120mm travel
Max compatible fork travel See service manual

Wheels
Hub front Shimano TC500 alloy, centerlock, 110x15mm thru axle
Hub rear Shimano TC500 alloy, centerlock, 148x12mm thru axle
Skewer rear Bontrager Switch thru axle, removable lever
Rim Bontrager Connection, double-wall, 32-hole, 20mm width, Presta valve
*Tire Size: XS , S
Bontrager XT3 Comp, wire bead, 30 tpi, 27.5x2.40''
Size: M , L , XL
Bontrager XT3 Comp, wire bead, 30 tpi, 29x2.40''
Max tire size Frame: 29x2.60" (XS: 27.5x2.60"), Fork: See manufacturer

E-system
Battery Bosch CompactTube 400Wh
Charger Bosch standard 2A, 110V, smart system

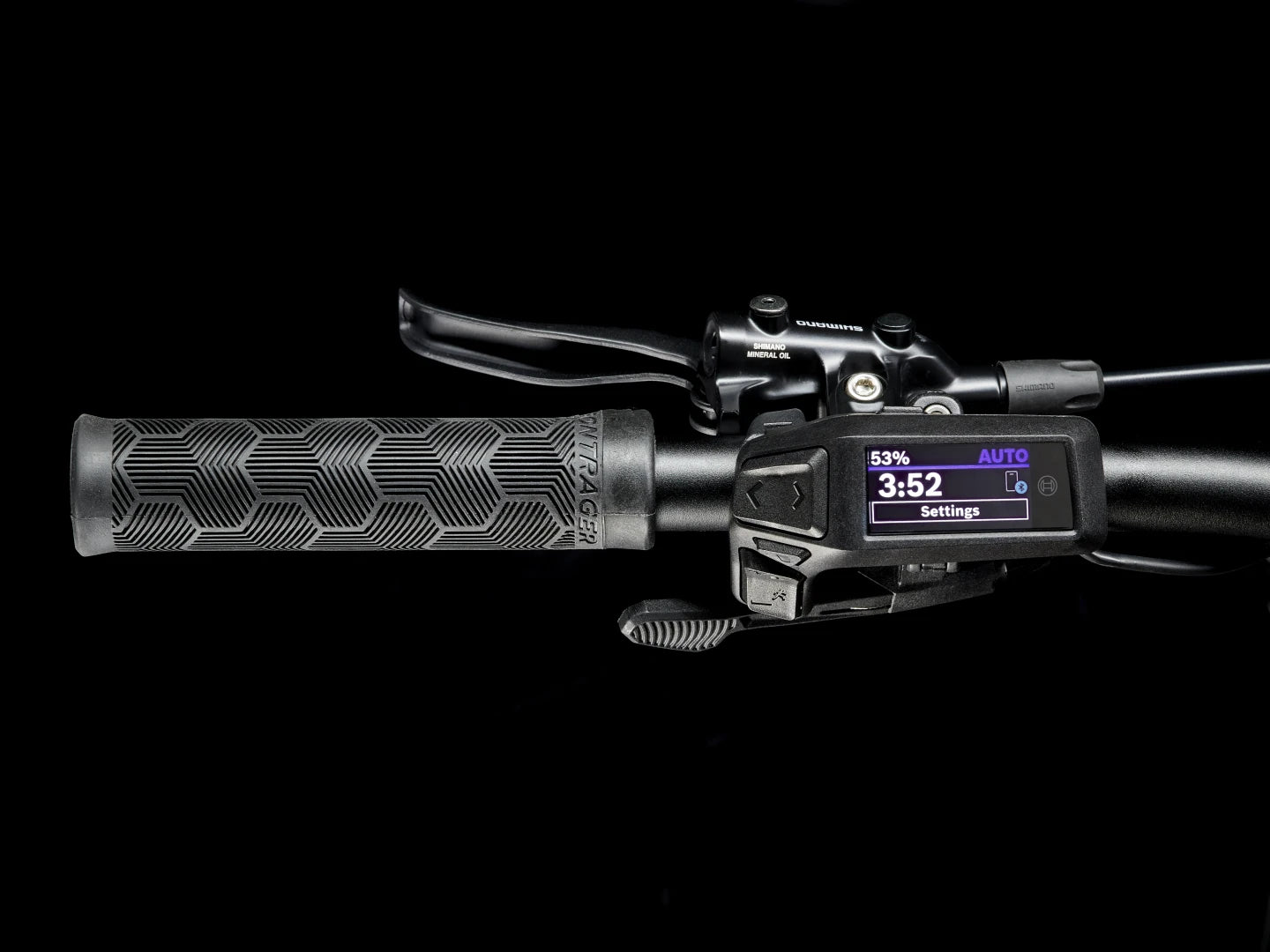

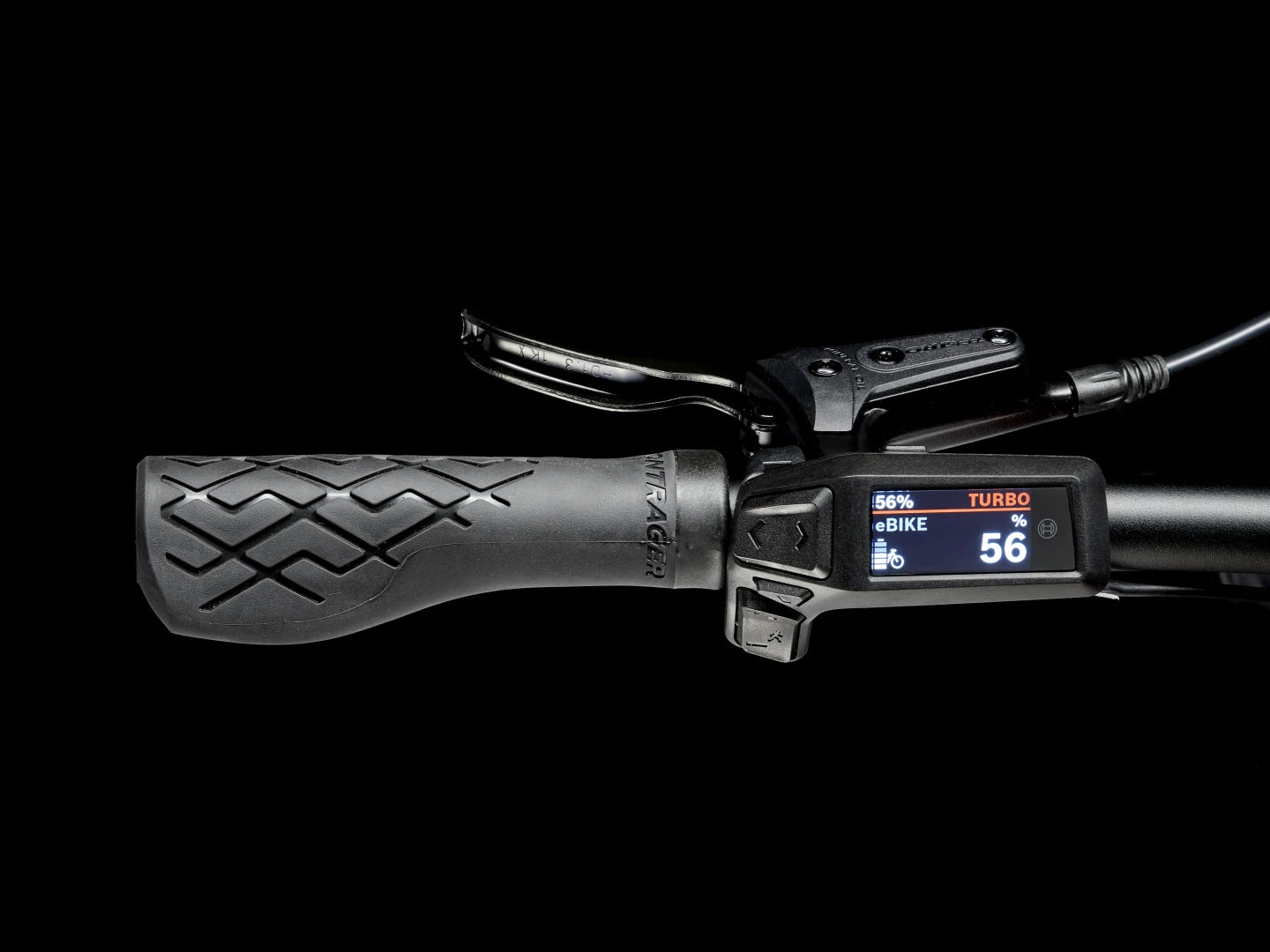

Computer Bosch Purion 200

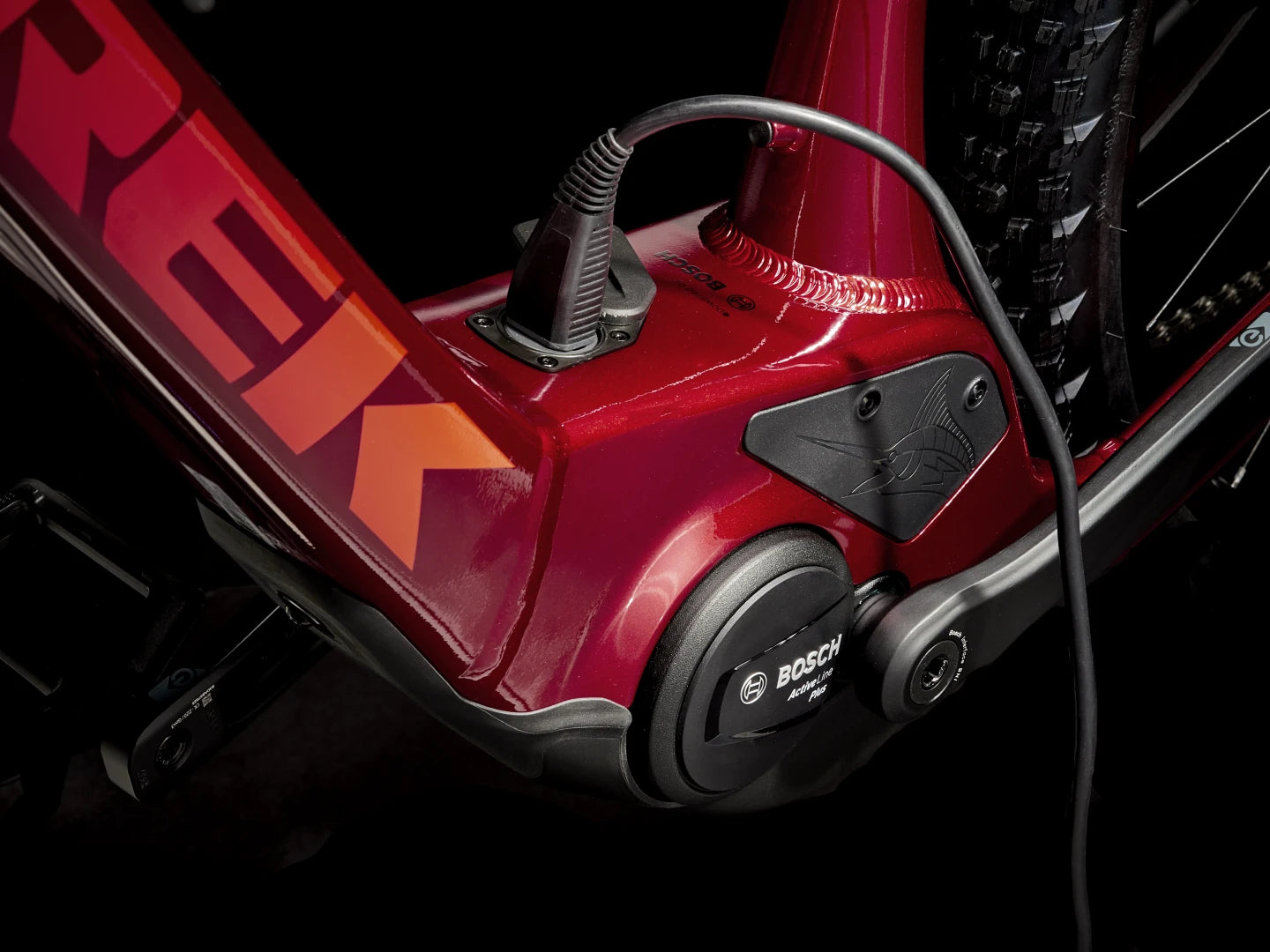

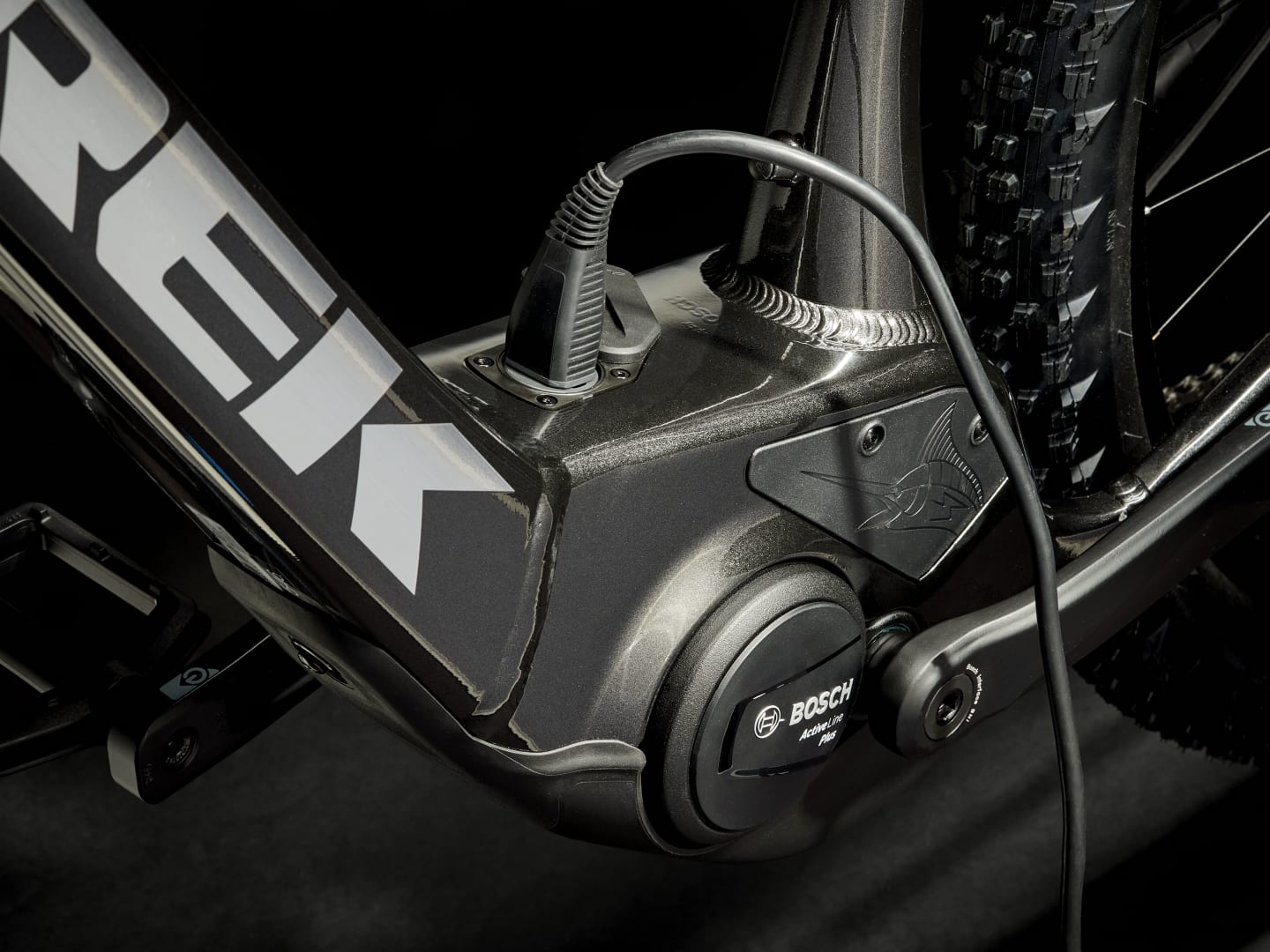

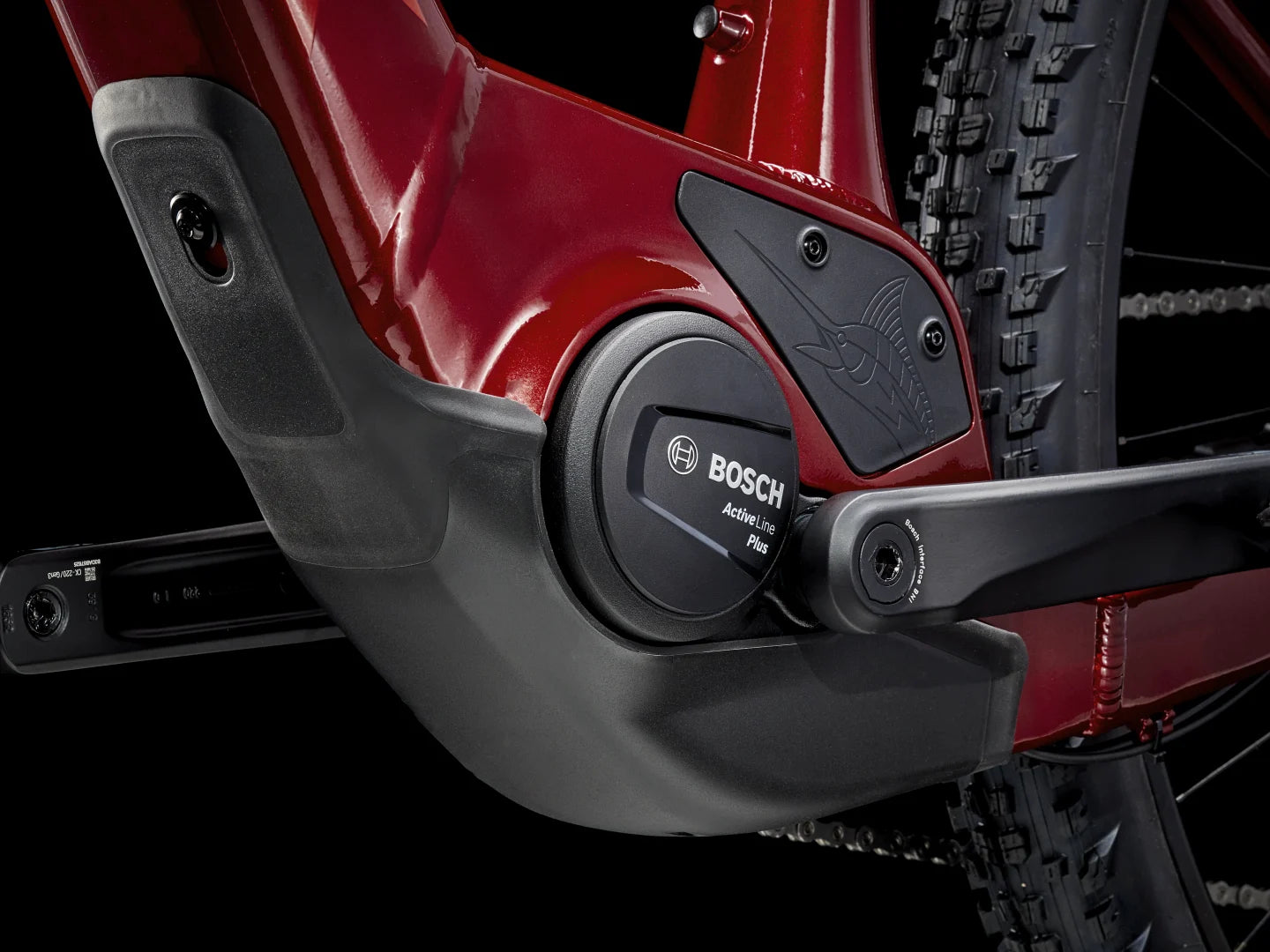

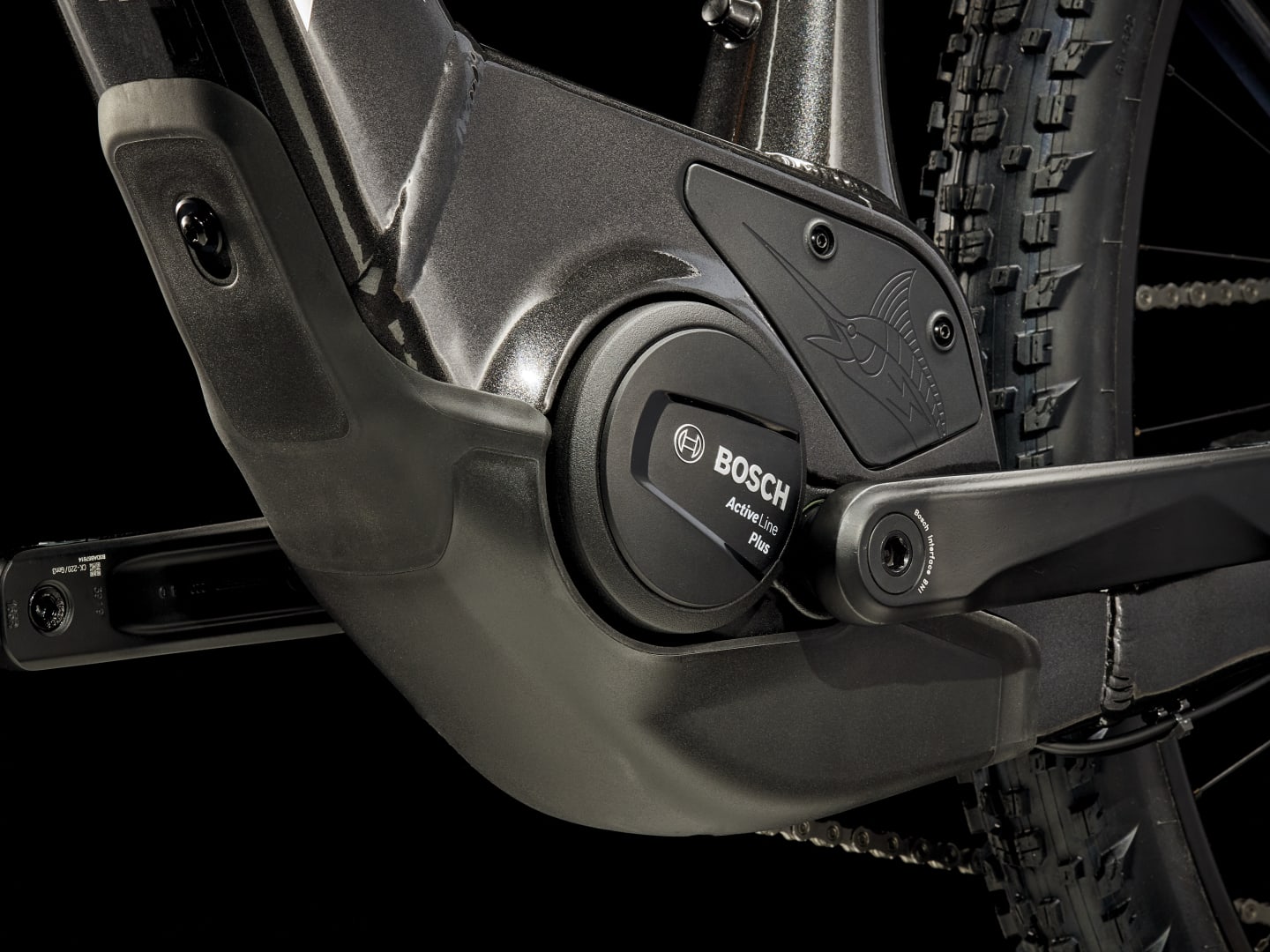

Motor Bosch Active Line Plus

Drivetrain
Shifter Shimano U4000, 9 speed

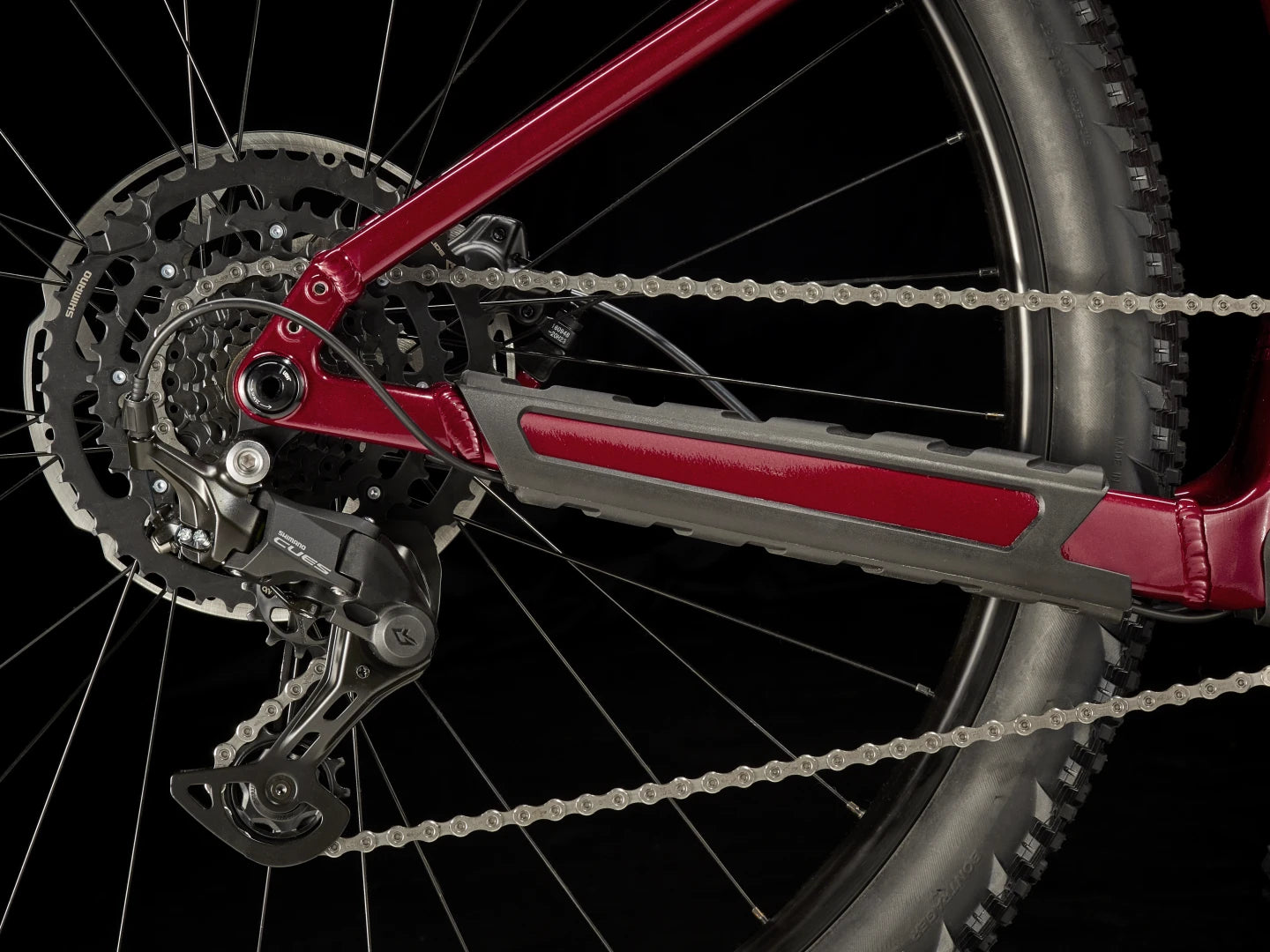

Rear derailleur Shimano CUES U4000
Crank FSA CK-220, 165mm length
Chainring FSA, 32T, steel
Cassette Shimano LINKGLIDE LG300, 11-46, 9 speed
Chain Shimano LG500, 9/10/11 speed
Pedal VP-536 nylon platform
Max chainring size 1x: 36T, min 32T

Components

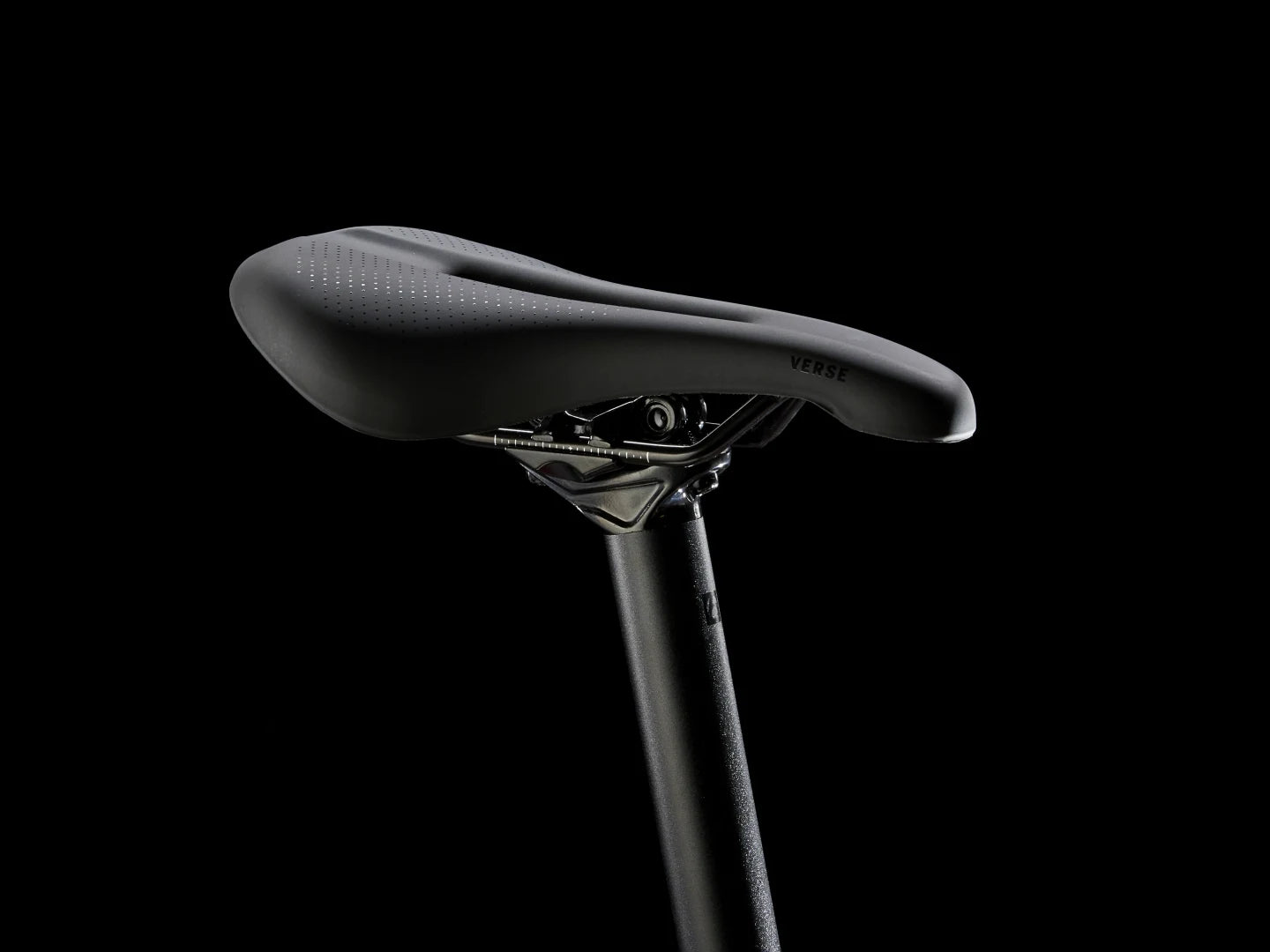

Saddle Bontrager Verse P3, steel rails
*Seatpost Size: XS , S
Bontrager alloy, 31.6mm, 12mm offset, 330mm length
Size: M
Bontrager alloy, 31.6mm, 12mm offset, 360mm length
Size: L , XL
Bontrager alloy, 31.6mm, 12mm offset, 400mm length
*Handlebar Size: XS , S
Bontrager alloy, 31.8mm, 15mm rise, 720mm width
Size: M , L , XL
Bontrager alloy, 31.8mm, 15mm rise, 750mm width
Grips Bontrager XR Endurance Comp, lock-on
*Stem Size: XS
Bontrager Comp, 31.8mm, 7 degree, 35mm length
Size: S , M , L
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length
Size: XL
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length
Headset Semi-integrated, loose ball bearing, 1-1/8'' top, 1.5'' bottom
Brake rotor Tektro, centerlock, 203mm
Brake Set Tektro HD-M275 hydraulic disc
Rotor size Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer

Weight M - 22.45 kg / 49.5 lbs (with tubes)
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

Please contact us for any further product specific specifications for this 24 Trek Marlin+ 6.
