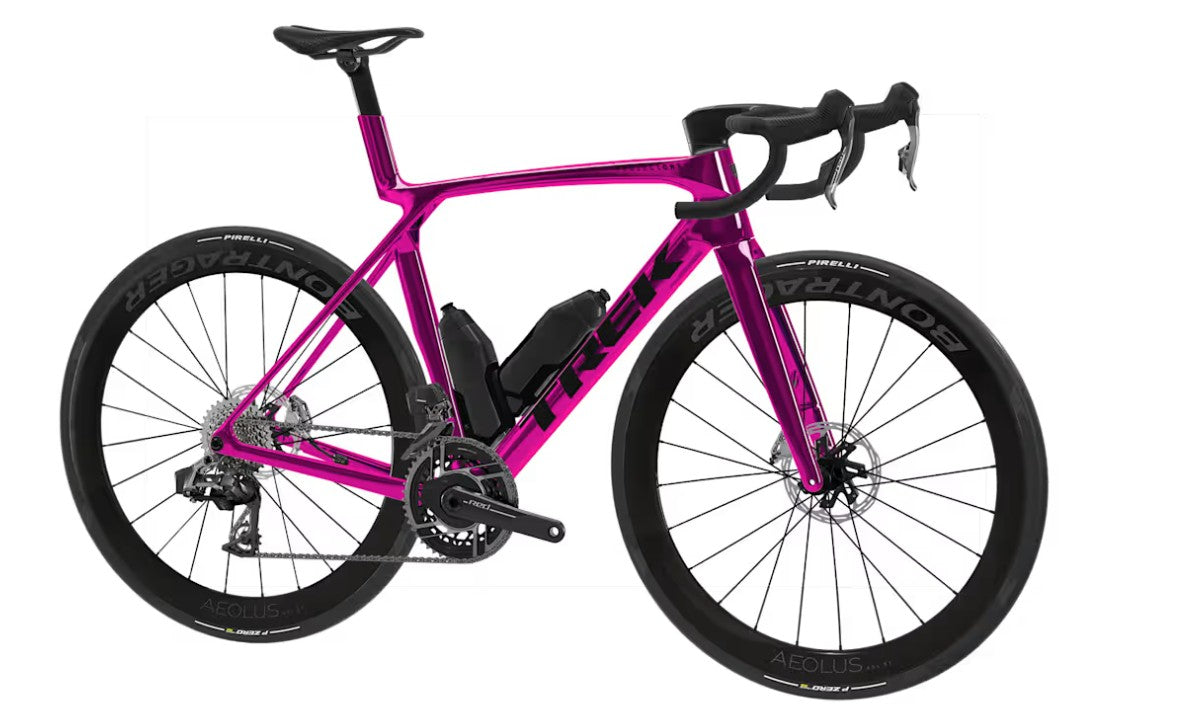

ProjectOne Madone SLR 9 AXS Gen 8

Bikes will be available instore, or shipped and assembled to your local distributer.

All other items will be shipped by Australia Post Standard Shipping.

Or, feel free to pick up your order instore!

If you have any troubles, give us a call on 0480 349 805 to discuss the ProjectOne Madone SLR 9 AXS Gen 8

Uncover the Perfect Service Level for your Bike, from Every 3 to 6 Months, to Every 12 Months.

Click here to Learn More!

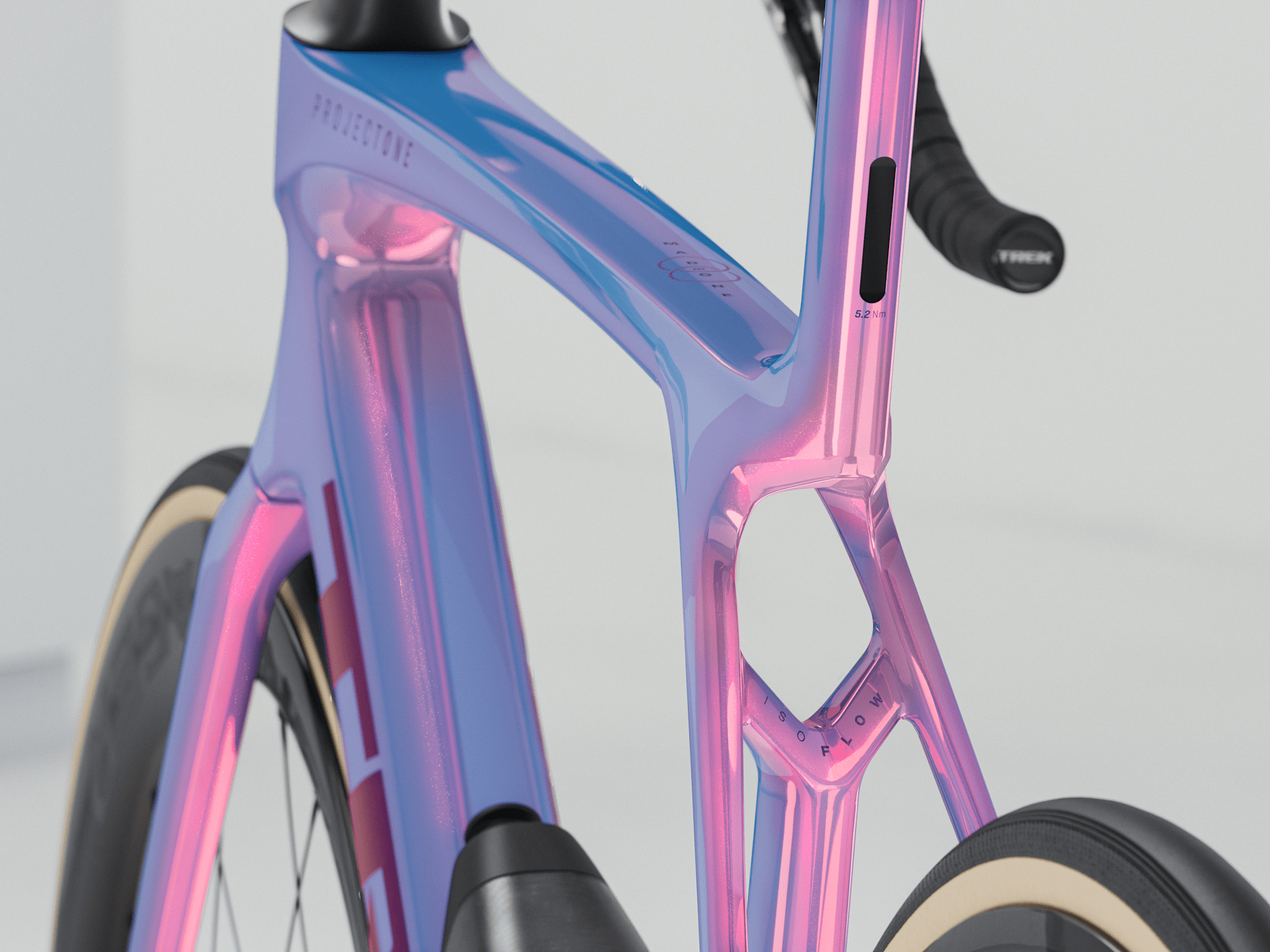

Frame with Fork 900 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic-only routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle
Fork Madone Gen 8 one-piece carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100 mm chamfered thru axle

Weight
Weight ML - 7.00 kg / 15.44 lbs (with TLR sealant, no tubes, no bottles/cages)
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).

E-system
Battery SRAM eTap battery pack (with charger)

Drivetrain
Shifter SRAM RED AXS E1
Front derailleur SRAM RED AXS E1, braze-on
Rear derailleur SRAM RED AXS E1, 36T max cog
*Crank Size: XS, S
SRAM RED AXS E1, power meter, 48/35, DUB, 165 mm length
Size: M
SRAM RED AXS E1, power meter, 48/35, DUB, 170 mm length
Size: ML, L
SRAM RED AXS E1, power meter, 48/35, DUB, 172.5 mm length
Size: XL
SRAM RED AXS E1, power meter, 48/35, DUB, 175 mm length
Bottom bracket SRAM DUB, T47 threaded, internal bearing
Cassette SRAM RED XG-1290 E1, 10-33, 12-speed
Chain SRAM RED E1, 12-speed
Max. chainring size 1x: 54T, 2x: 56/43

Wheels
Wheel front Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51 mm rim depth, 100x12 mm thru axle
Wheel rear Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51 mm rim depth, SRAM XD-R driver, 142x12 mm thru axle
Skewer front Bontrager Switch chamfered thru axle, removable lever
Skewer rear Bontrager Switch chamfered thru axle, removable lever
*Tyre Size: XS, S, M, ML, L, XL
Bontrager Aeolus RSL RD, Tubeless-Ready, cotton construction, aramid bead, 170 tpi, 700x28 mm
Size: XS, S, M, ML, L, XL
Pirelli P Zero Race, 120 tpi, tubeless-compatible, 700x28 mm
Tyre part Bontrager TLR sealant, 180 ml/6 oz
Max tyre size 32 mm (as measured, see manual for details)

Components
*Saddle Size: XS, S
Aeolus RSL, carbon rails, 155 mm width
Size: M, ML, L, XL
Aeolus RSL, carbon rails, 145 mm width
*Seatpost Size: XS, S, M, XL
Madone aero carbon seat post, 0 mm offset, short length
Size: ML, L
Madone aero carbon seat post, 0 mm offset, long length

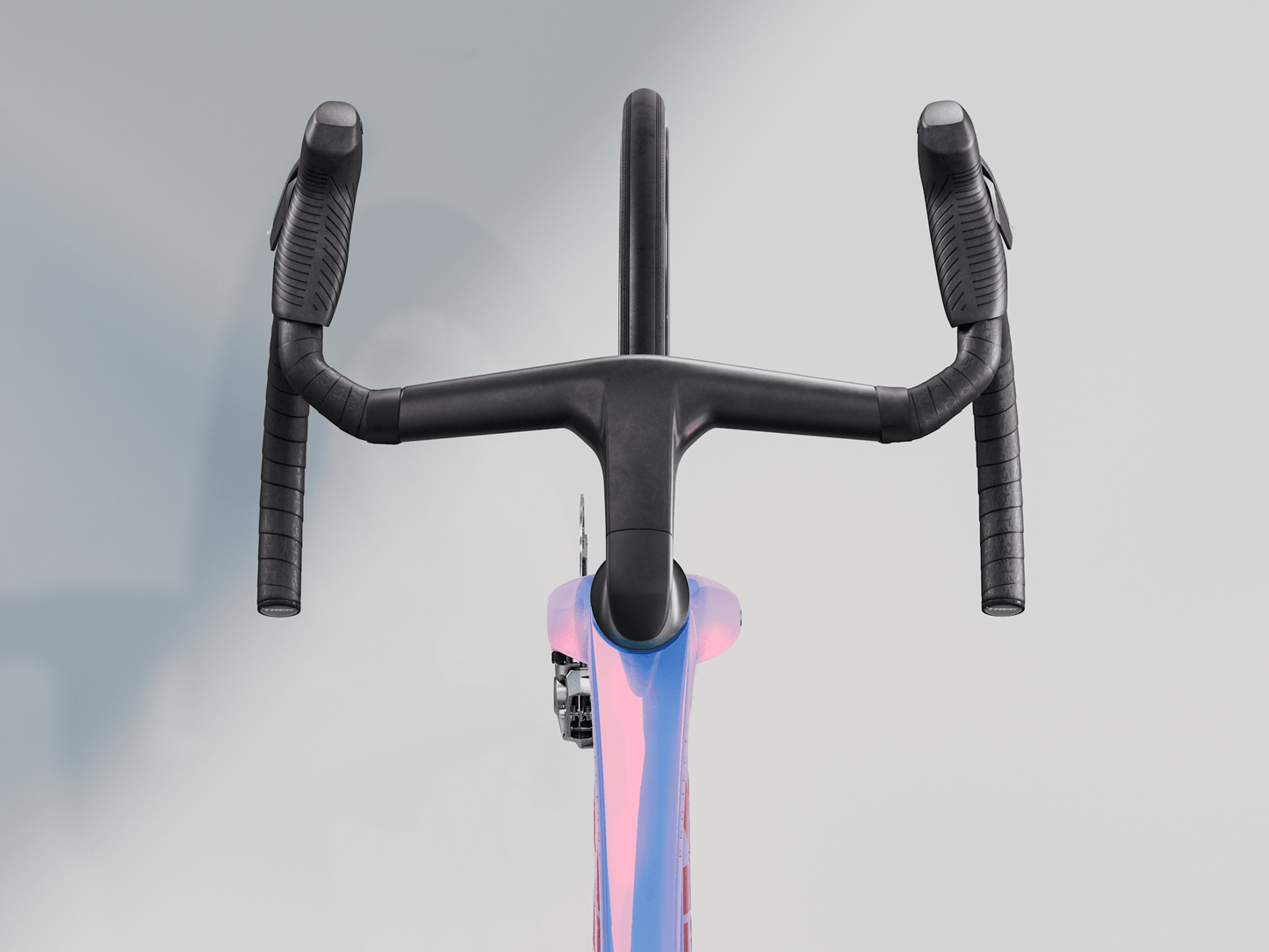

*Handlebar/stem (integrated) Size: XS
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 35 cm control width, 38 cm drop width, 80 mm stem length
Size: S
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 37 cm control width, 40 cm drop width, 90 mm stem length
Size: M
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 90 mm stem length
Size: ML, L
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 100 mm stem length
Size: XL
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 41 cm control width, 44 cm drop width, 110 mm stem length
Handlebar tape Trek EcoTack
Rotor size Max brake rotor sizes: 180 mm front, 160 mm rear
Please contact us for any further product specific specifications for this ProjectOne Madone SLR 9 AXS Gen 8.
